MC000338

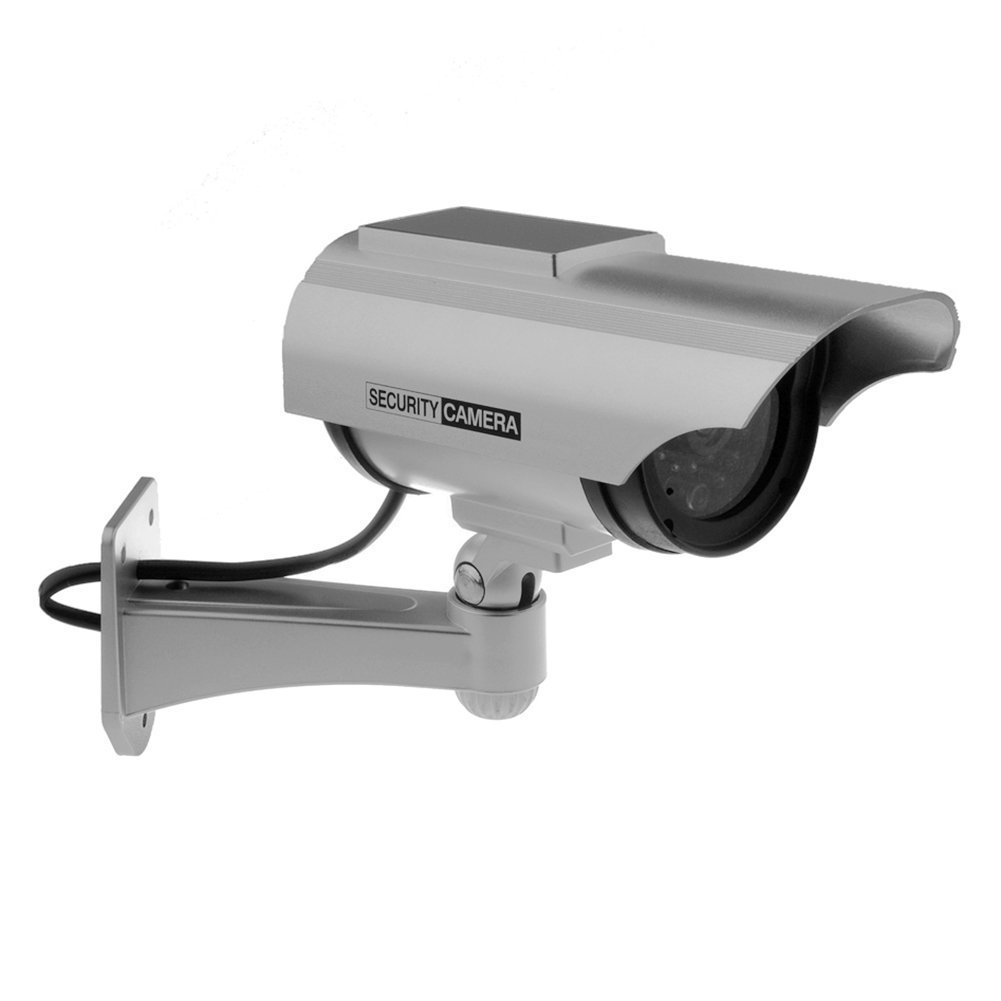

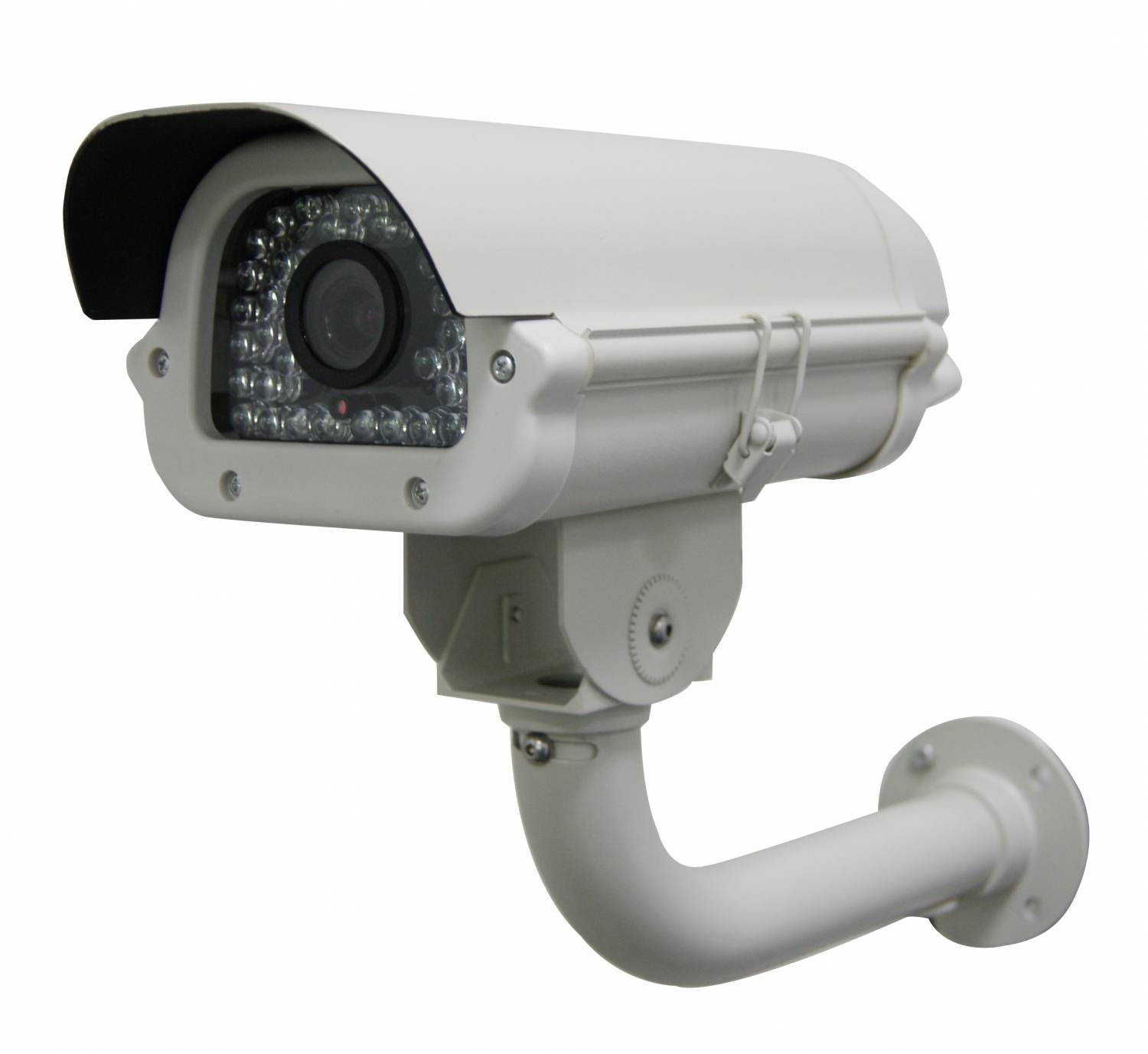

Alarm installations, emergency call and signalling. Camera for monitoring system; Security camera; Surveillance camera; Surveillance camera (wall mounting); Surveillance camera (wall mounting, bullet type)

Code:

Version:

Group:

Alarm installations, emergency call and signalling

MG000006

Drawing

Features

01		Mounting method EF000003 - Alphanumeric
02	a	Angle (°) EF005434 - Range
03	a	Default angle (°) EF015223 - Numeric
04	D1	Diameter 1 (mm) EF010945 - Numeric
05	H1	Height mounting plate (mm) EF026087 - Numeric
06	H2	Height 2 (mm) EF010006 - Numeric
07	H3	Housing height (mm) EF020280 - Numeric
08	L1	Length 1 (mm) EF021554 - Numeric
09	L2	Depth mounting plate (mm) EF021744 - Numeric
10	L3	Length 3 (mm) EF021750 - Numeric
11	L4	Housing length (mm) EF002470 - Numeric
12	W	Housing width (mm) EF020281 - Numeric
13	W1	Width 1 (mm) EF023087 - Numeric

Related productclasses

EC001511/5

EC001511/6

EC001511/7

EC001511/8

Synonyms

Camera for monitoring system

Security camera

Surveillance camera

Surveillance camera (wall mounting)

Surveillance camera (wall mounting, bullet type)

Surveillance camera (wall mounting)

MC000338

Mounting method

Angle (°)

Default angle (°)

Diameter 1 (mm)

Height mounting plate (mm)

Height 2 (mm)

Housing height (mm)

Length 1 (mm)

Depth mounting plate (mm)

Length 3 (mm)

Housing length (mm)

Housing width (mm)

Width 1 (mm)
