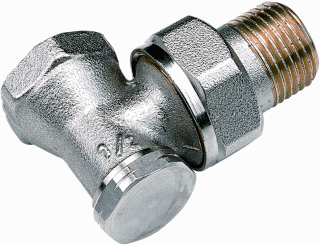

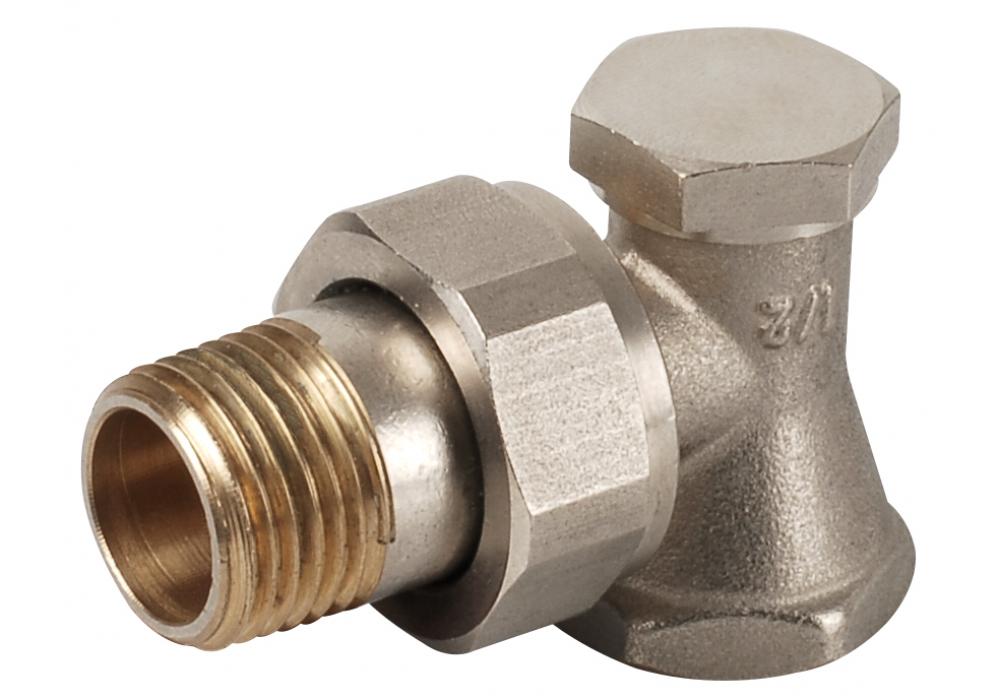

Radiator foot valve (right-angled)
Code
MC000343Version
1
Group
Hydronic - Valves and control components (MG000042)Release
Drawing
Features
01 | Right-angled model EF003645 - Logical | ||
02 | Model EF000010 - Alphanumeric | ||
05 | DB | Diameter control EF011583 - Numeric | |
10 | Le1 | Length to gland nut (mm) EF010764 - Numeric | |
11 | Le2 | Height operating element (mm) EF022273 - Numeric | |
12 | Le3 | Distance to operating element (mm) EF010523 - Numeric |
Features port 1
03 | C1 | Height screw gland (mm) EF010040 - Numeric | |
06 | DN1 | Size of radiator connection EF021250 - Alphanumeric | |
08 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
13 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
15 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
17 | SLW1 | Wrench width (mm) EF000177 - Numeric | |
19 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
21 | Connection EF000443 - Alphanumeric |
Features port 2
04 | C2 | Height screw gland (mm) EF010040 - Numeric | |
07 | DN2 | Size of pipe connection EF021187 - Alphanumeric | |
09 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
14 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
16 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
18 | SLW2 | Wrench width (mm) EF000177 - Numeric | |
20 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
22 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Radiator foot valve (right-angled)
