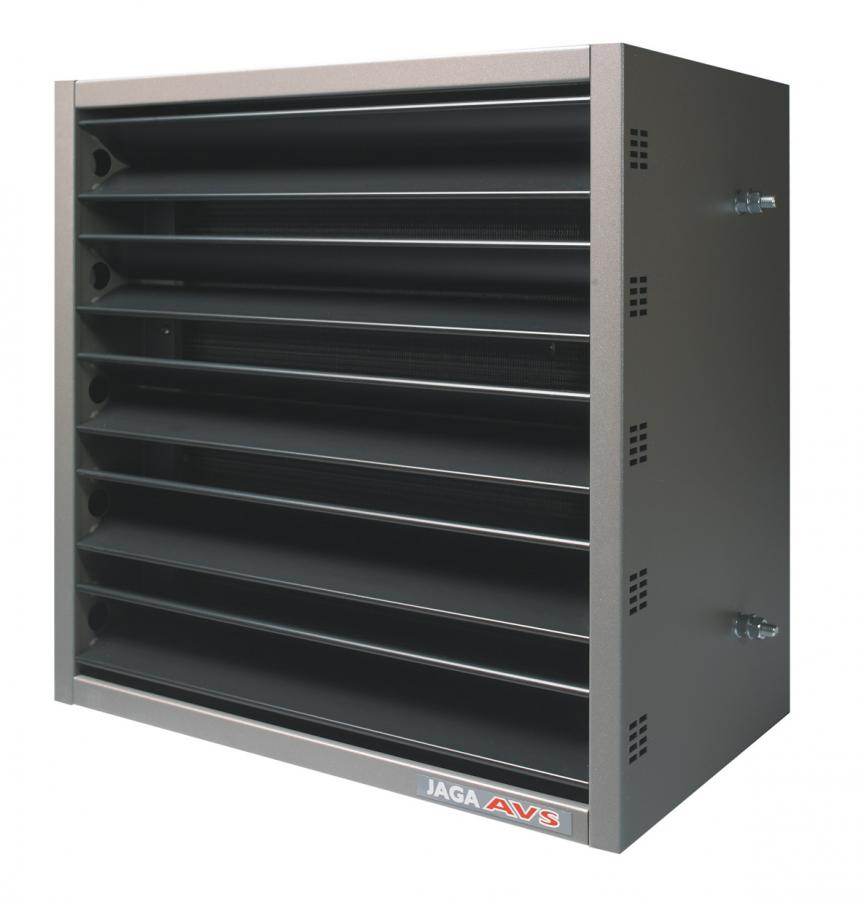

Heater, air, indirect, rectangular MC000345
A heating device that warms air by transferring heat from an external combustion process through a heat exchanger, preventing direct contact between combustion gases and the airflow.
Features 26
Class features
- 3
Position thermostat cableEF011429
A coordinate in mm · CA3 in drawing
- 4
Position electrical connectionEF010979
A coordinate in mm · CA4 in drawing
- 5
DepthEF000049
A number in mm · D in drawing
- 6
Depth 1EF010952
A number in mm · D1 in drawing
- 11
HeightEF000040
A number in mm · H in drawing
- 12
Length 1EF021554
A number in mm · Le1 in drawing
- 13
Length 2EF021555
A number in mm · Le2 in drawing
- 14
Length 3EF021750
A number in mm · Le3 in drawing
- 15
Length 4EF010951
A number in mm · Le4 in drawing
- 24
WidthEF000008
A number in mm · W in drawing
Port 1
- 1
Position connectionEF011006
A coordinate in mm · CA1 in drawing
- 7
Nominal diameterEF023191
Choose one value · DN1 in drawing
1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch1 1/2 inch (40)1 3/4 inch1 7/8 inch - 9
Outer pipe diameter connectionEF020208
A number in mm · Do1 in drawing
- 16
Sleeve length (no longer used)EF010520
A number in mm · P1 in drawing
- 18
Length gusset/threadEF010521
A number in mm · Q1 in drawing
- 20
Directional vector connectionEF011005
A coordinate · RV1 in drawing
- 22
Wall thickness connectionEF010546
A number in mm · s1 in drawing
- 25
ConnectionEF000443
Choose one value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)External thread flare (UNF)Soldered endGlued endThin-walled steel pipe endInternal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPP-G (ISO 228-1)
Port 2
- 2
Position connectionEF011006
A coordinate in mm · CA2 in drawing
- 8
Nominal diameterEF023191
Choose one value · DN2 in drawing
1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch1 1/2 inch (40)1 3/4 inch1 7/8 inch - 10
Outer pipe diameter connectionEF020208
A number in mm · Do2 in drawing
- 17
Sleeve length (no longer used)EF010520
A number in mm · P2 in drawing
- 19
Length gusset/threadEF010521
A number in mm · Q2 in drawing
- 21
Directional vector connectionEF011005
A coordinate · RV2 in drawing
- 23
Wall thickness connectionEF010546
A number in mm · s2 in drawing
- 26
ConnectionEF000443
Choose one value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)External thread flare (UNF)Soldered endGlued endThin-walled steel pipe endInternal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPP-G (ISO 228-1)
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
