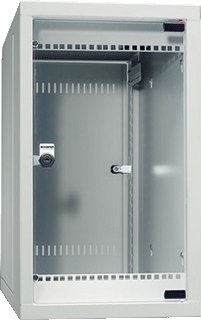

Network/server enclosure (wall mounting)
Code
MC000348Version
3
Group
Electrical - Enclosures and cabinets (MG000008)Release
Drawing
Features
01 | Number of doors EF000122 - Numeric | ||
02 | D | Depth (mm) EF000049 - Numeric | |
03 | D1 | Depth 1 (mm) EF010952 - Numeric | |
04 | Dc | Depth cable entry (mm) EF011055 - Numeric | |
05 | H | Height (mm) EF000040 - Numeric | |
06 | W | Width (mm) EF000008 - Numeric | |
07 | W1 | Width 1 (mm) EF023087 - Numeric | |
08 | Wc | Width cable entry (mm) EF011056 - Numeric | |
09 | Wd1 | Width door 1 (mm) EF011057 - Numeric | |
10 | Wd2 | Width door 2 (mm) EF011058 - Numeric | |
11 | Wd3 | Width door 3 (mm) EF011059 - Numeric | |
12 | Wd4 | Width door 4 (mm) EF011060 - Numeric | |
13 | Wd5 | Width door 5 (mm) EF011584 - Numeric | |
14 | Wd6 | Width door 6 (mm) EF011585 - Numeric |
Related productclasses
Synonyms
Network/server enclosure (wall mounting)
