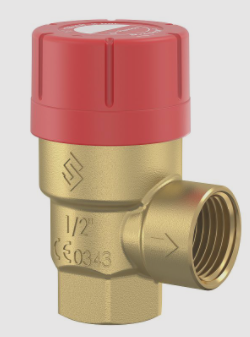

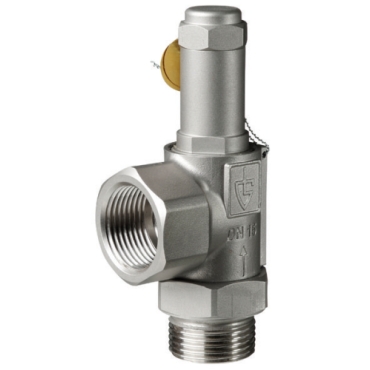

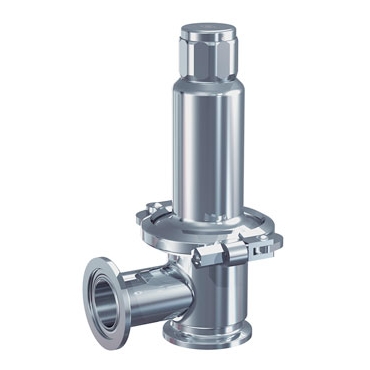

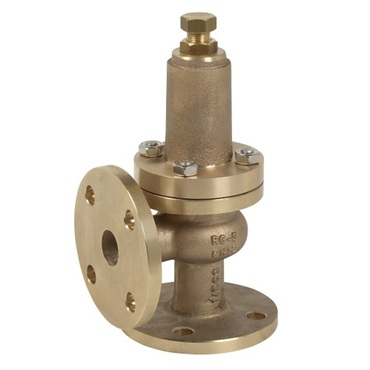

Spring-loaded valve (right angled)
Code
MC000352Version
Group
Hydronic - Valves and control components (MG000042)Release
Drawing
Features
01 | Model EF000010 - Alphanumeric | ||
14 | DH | Diameter housing (mm) EF020596 - Numeric | |
21 | DVH | Diameter non-return valve ring (mm) EF010704 - Numeric | |
26 | H1 | Height spring housing (mm) EF011575 - Numeric | |
39 | V | Distance to valve housing (mm) EF011576 - Numeric |
Features port 1
02 | a1 | Angle to first bolt hole (°) EF010524 - Numeric | |
04 | b1 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
06 | C1 | Height screw gland (mm) EF010040 - Numeric | |
08 | D1 | Outer diameter of flange (mm) EF021531 - Numeric | |
10 | d2-1 | Diameter bolt hole (mm) EF021780 - Numeric | |
12 | d4-1 | Diameter sealing edge (mm) EF010527 - Numeric | |
15 | DN1 | Nominal diameter connection 1 EF023193 - Alphanumeric | |
17 | Do1 | Outer pipe diameter connection 1 (mm) EF020122 - Numeric | |
19 | Dr1 | Rim diameter (mm) EF010037 - Numeric | |
22 | f1 | Thickness sealing edge (mm) EF010528 - Numeric | |
24 | g1 | Height screw gland edge (mm) EF010516 - Numeric | |
27 | j1 | Distance to edge (mm) EF010519 - Numeric | |
29 | k1 | Pitch circle (mm) EF021643 - Numeric | |
31 | L1 | Length of connection 1 (mm) EF020151 - Numeric | |
33 | n1 | Number of bolt holes EF021779 - Numeric | |
35 | SLW1 | Wrench width (mm) EF000177 - Numeric | |
37 | t1 | Rim thickness (mm) EF010038 - Numeric | |
40 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
42 | Connection 1 EF000321 - Alphanumeric |
Features port 2
03 | a2 | Angle to first bolt hole (°) EF010524 - Numeric | |
05 | b2 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
07 | C2 | Height screw gland (mm) EF010040 - Numeric | |
09 | D2 | Outer diameter of flange (mm) EF021531 - Numeric | |
11 | d2-2 | Diameter bolt hole (mm) EF021780 - Numeric | |
13 | d4-2 | Diameter sealing edge (mm) EF010527 - Numeric | |
16 | DN2 | Nominal diameter connection 2 EF020052 - Alphanumeric | |
18 | Do2 | Outer pipe diameter connection 2 (mm) EF020123 - Numeric | |
20 | Dr2 | Rim diameter (mm) EF010037 - Numeric | |
23 | f2 | Thickness sealing edge (mm) EF010528 - Numeric | |
25 | g2 | Height screw gland edge (mm) EF010516 - Numeric | |
28 | j2 | Distance to edge (mm) EF010519 - Numeric | |
30 | k2 | Pitch circle (mm) EF021643 - Numeric | |
32 | L2 | Length of connection 2 (mm) EF020152 - Numeric | |
34 | n2 | Number of bolt holes EF021779 - Numeric | |
36 | SLW2 | Wrench width (mm) EF000177 - Numeric | |
38 | t2 | Rim thickness (mm) EF010038 - Numeric | |
41 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
43 | Connection 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Spring-loaded pressure relief valve
Spring-loaded valve (right angled)
