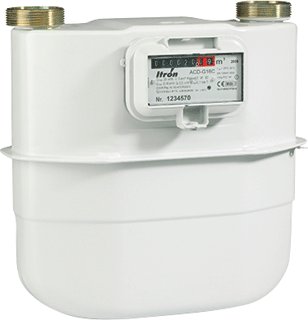

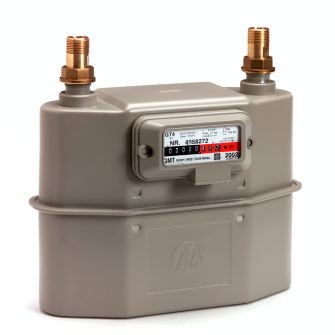

Bellowgasmeter

Code

MC000355

Version

Group

Piping - Gas distribution components (MG000025)

Release

Drawing

Features

	01	D	Depth (mm) EF000049 - Numeric
	02	D1	Depth 1 (mm) EF010952 - Numeric
	07	H	Height (mm) EF000040 - Numeric
	08	H2	Height 2 (mm) EF010006 - Numeric
	09	H3	Display height (mm) EF011023 - Numeric
	10	Le2	Centre-to-centre distance of connections (mm) EF021151 - Numeric
	13	W	Width (mm) EF000008 - Numeric
	14	W1	Width 1 (mm) EF023087 - Numeric
	15	W2	Display width (mm) EF011024 - Numeric

Features port 1

	03	DN1	Nominal diameter EF023191 - Alphanumeric
	05	Do1	Outer pipe diameter connection (mm) EF020208 - Numeric
	11	Q1	Length gusset/thread (mm) EF010521 - Numeric
	16		Connection EF000443 - Alphanumeric

Features port 2

	04	DN2	Nominal diameter EF023191 - Alphanumeric
	06	Do2	Outer pipe diameter connection (mm) EF020208 - Numeric
	12	Q2	Length gusset/thread (mm) EF010521 - Numeric
	17		Connection EF000443 - Alphanumeric

Related productclasses

Synonyms

Bellowgasmeter
