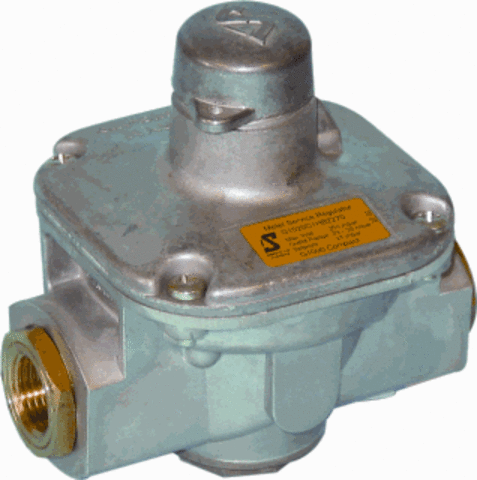

Pressure control valve MC000357

A valve designed to regulate and stabilize pressure within a fluid or gas system, ensuring consistent operation and safety.

Under construction
Hydronic - Valves and control components MG000042

Features 50

Class features

  1. 1

    Diameter 3EF010949

    A number in mm · D3 in drawing

  2. 2

    Diameter 4EF011582

    A number in mm · D4 in drawing

  3. 3

    HeightEF000040

    A number in mm · H in drawing

  4. 4

    Height 1EF010005

    A number in mm · H1 in drawing

  5. 5

    DiameterEF000551

    A number in mm · HD in drawing

  6. 6

    Height spring housingEF011575

    A number in mm · HS in drawing

  7. 7

    WidthEF000008

    A number in mm · W in drawing

Port 1

  1. 8

    ConnectionEF000443

    Choose one value

    Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)Flange
  2. 9

    Angle to first bolt holeEF010524

    A number in ° · a1 in drawing

  3. 10

    Nominal diameterEF023191

    Choose one value · DN1 in drawing

    1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 10DN 121/2 inch (15)DN 15DN 18
  4. 11

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b1 in drawing

  5. 12

    Outer pipe diameter connectionEF020208

    A number in mm · Do1 in drawing

  6. 13

    Height screw glandEF010040

    A number in mm · C1 in drawing

  7. 14

    Working length connection 1EF020153

    A number in mm · Z1 in drawing

  8. 15

    Diameter bolt holeEF021780

    A number in mm · d2-1 in drawing

  9. 16

    Outer diameter of flangeEF021531

    A number in mm · D1 in drawing

  10. 17

    Diameter sealing edgeEF010527

    A number in mm · d4-1 in drawing

  11. 21

    Rim diameterEF010037

    A number in mm · Dr1 in drawing

  12. 23

    Thickness sealing edgeEF010528

    A number in mm · f1 in drawing

  13. 25

    Height screw gland edgeEF010516

    A number in mm · g1 in drawing

  14. 27

    Distance to edgeEF010519

    A number in mm · j1 in drawing

  15. 29

    Pitch circleEF021643

    A number in mm · k1 in drawing

  16. 31

    Length of connection 1EF020151

    A number in mm · L1 in drawing

  17. 33

    Wrench width union nutEF022259

    A number in mm · SLW1 in drawing

  18. 34

    Rim thicknessEF010038

    A number in mm · t1 in drawing

Port 2

  1. 18

    ConnectionEF000443

    Choose one value

    Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)Flange
  2. 19

    Outer diameter of flangeEF021531

    A number in mm · D2 in drawing

  3. 20

    Nominal diameterEF023191

    Choose one value · DN2 in drawing

    1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 10DN 121/2 inch (15)DN 15DN 18
  4. 22

    Outer pipe diameter connectionEF020208

    A number in mm · Do2 in drawing

  5. 24

    Working length connection 2EF020154

    A number in mm · Z2 in drawing

  6. 35

    Angle to first bolt holeEF010524

    A number in ° · a2 in drawing

  7. 36

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b2 in drawing

  8. 37

    Height screw glandEF010040

    A number in mm · C2 in drawing

  9. 38

    Diameter bolt holeEF021780

    A number in mm · d2-2 in drawing

  10. 39

    Diameter sealing edgeEF010527

    A number in mm · d4-2 in drawing

  11. 40

    Rim diameterEF010037

    A number in mm · Dr2 in drawing

  12. 41

    Thickness sealing edgeEF010528

    A number in mm · f2 in drawing

  13. 42

    Height screw gland edgeEF010516

    A number in mm · g2 in drawing

  14. 43

    Distance to edgeEF010519

    A number in mm · j2 in drawing

  15. 44

    Pitch circleEF021643

    A number in mm · k2 in drawing

  16. 45

    Length of connection 2EF020152

    A number in mm · L2 in drawing

  17. 46

    Wrench width union nutEF022259

    A number in mm · SLW2 in drawing

  18. 47

    Rim thicknessEF010038

    A number in mm · t2 in drawing

Port 3

  1. 26

    Position connectionEF011006

    A coordinate in mm · CA3 in drawing

  2. 28

    Directional vector connectionEF011005

    A coordinate · DV3 in drawing

  3. 30

    ConnectionEF000443

    Choose one value

    Internal thread conical (NPT)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)
  4. 32

    Nominal diameterEF023191

    Choose one value · DN3 in drawing

    1/8 inch1/4 inch3/8 inch
  5. 48

    Outer pipe diameter connection 3EF020124

    A number in mm · Do3 in drawing

  6. 49

    Length of connection 3EF020159

    A number in mm · L3 in drawing

  7. 50

    Working length connection 3EF020160

    A number in mm · Z3 in drawing

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
