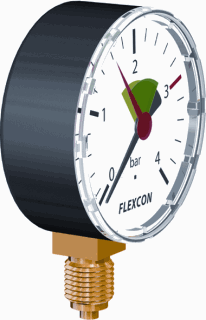

Bourdon tube pressure gauge (bottom connection)
Code
MC000360Version
2
Group
HVAC Sensors, switches and controllers (MG000028)Release
Drawing
Features
01 | Connection location EF020572 - Alphanumeric | ||
02 | D1 | Diameter 1 (mm) EF010945 - Numeric | |
03 | D2 | Diameter 2 (mm) EF010946 - Numeric | |
04 | D3 | Diameter 3 (mm) EF010949 - Numeric | |
05 | D5 | Depth 5 (mm) EF011246 - Numeric | |
06 | D6 | Depth 6 (mm) EF011247 - Numeric | |
07 | D7 | Depth 7 (mm) EF011248 - Numeric | |
08 | D8 | Cabinet diameter (mm) EF020576 - Numeric | |
11 | H1 | Height 1 (mm) EF010005 - Numeric | |
12 | H2 | Height 2 (mm) EF010006 - Numeric | |
15 | SLW | Wrench width (mm) EF000177 - Numeric |
Features port 1
09 | DN1 | Size of process connection EF023949 - Alphanumeric | |
10 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
13 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
14 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
16 | Connection EF000443 - Alphanumeric |
