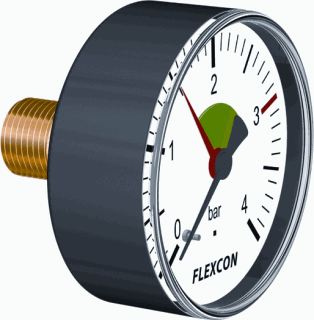

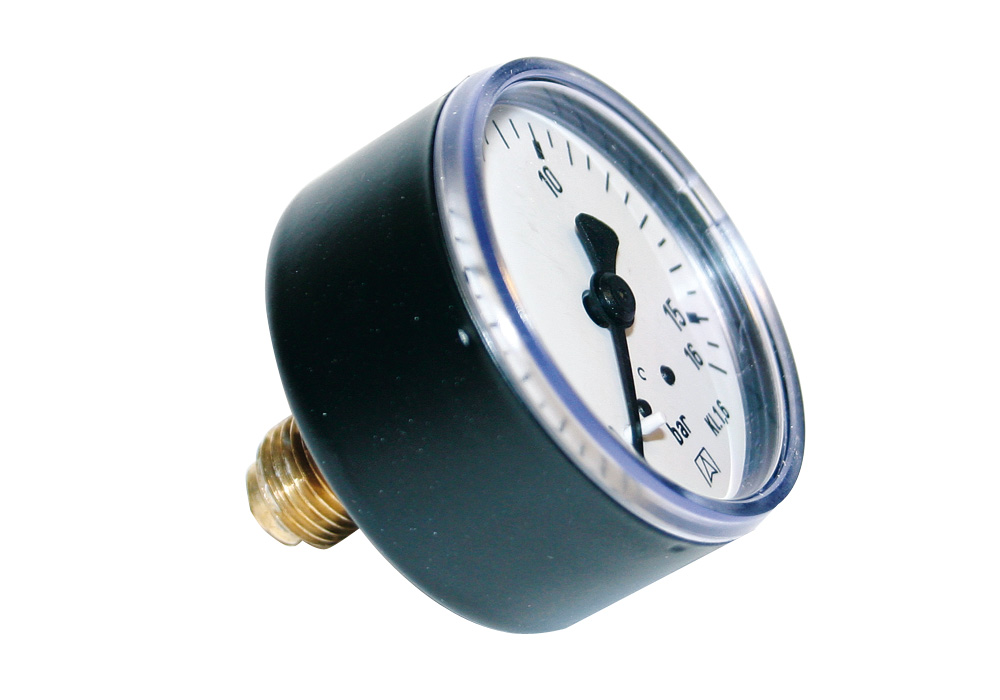

Pressure gauge, Bourdon tube, rear connection MC000361
A mechanical device that measures fluid pressure using a Bourdon tube, designed with a rear connection for mounting.
Features 16
Class features
- 1
Connection locationEF020572
Choose one value
Rear - 2
Diameter 1EF010945
A number in mm · D1 in drawing
- 3
Diameter 2EF010946
A number in mm · D2 in drawing
- 4
Diameter 3EF010949
A number in mm · D3 in drawing
- 5
Depth 5EF011246
A number in mm · D5 in drawing
- 6
Depth 6EF011247
A number in mm · D6 in drawing
- 7
Depth 7EF011248
A number in mm · D7 in drawing
- 8
Cabinet diameter (no longer used)EF020576
A number in mm · D8 in drawing
- 11
Height 1EF010005
A number in mm · H1 in drawing
- 12
Length 1EF021554
A number in mm · L1 in drawing
- 15
Wrench widthEF000177
A number in mm · SLW in drawing
Port 1
- 9
Size of process connectionEF023949
Choose one value · DN1 in drawing
1/8 inch1/4 inch3/8 inch1/2 inch3/4 inchM20 x 1.5 - 10
Outer pipe diameter connectionEF020208
A number in mm · Do1 in drawing
- 13
Length gusset/threadEF010521
A number in mm · Q1 in drawing
- 14
Wall thickness connectionEF010546
A number in mm · s1 in drawing
- 16
ConnectionEF000443
Choose one value
External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)External thread flare (UNF)Flare external thread (NPT)
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
