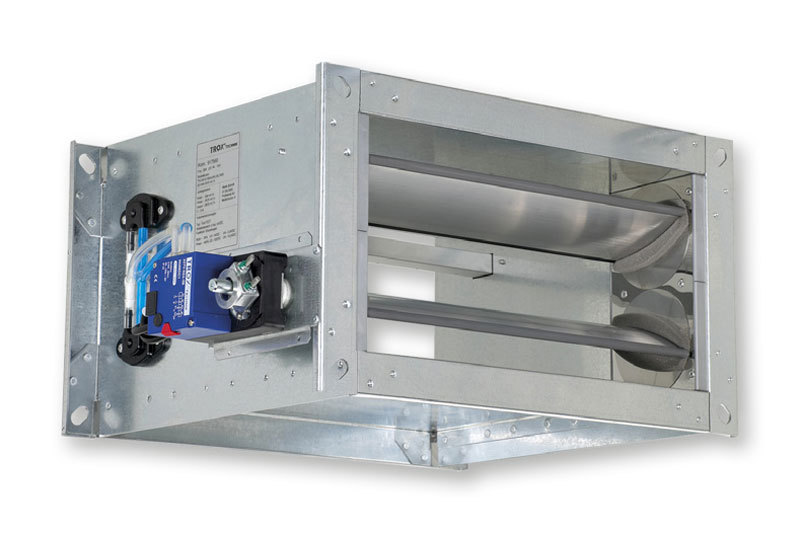

Volume-/pressure controller rectangular air duct MC000363

Published Ventilation and flue gas components MG000043

/

Features 20

Class features

1
OperationEF002147

Choose one value

HandElectromotor 24 VElectromotor 230 V
2
Height operating elementEF022273

A number in mm · E1 in drawing
5
HeightEF000040

A number in mm · H in drawing
6
Height 1EF010005

A number in mm · H1 in drawing
7
Height 2EF010006

A number in mm · H2 in drawing
10
LengthEF001438

A number in mm · L in drawing
11
Width 1EF023087

A number in mm · M1 in drawing
12
Width 2EF023088

A number in mm · M2 in drawing
13
Plate thicknessEF006112

A number in mm · s in drawing
14
WidthEF000008

A number in mm · W in drawing

Port 1

3
Height flangeEF010695

A number in mm · FH1 in drawing
8
Nominal duct heightEF020313

A number in mm · HN1 in drawing
15
Nominal duct widthEF020312

A number in mm · WN1 in drawing
17
Working length connection 1EF020153

A number in mm · Z1 in drawing
19
ConnectionEF000443

Choose one value

Duct connection profile

Port 2

4
Height flangeEF010695

A number in mm · FH2 in drawing
9
Nominal duct heightEF020313

A number in mm · HN2 in drawing
16
Nominal duct widthEF020312

A number in mm · WN2 in drawing
18
Working length connection 2EF020154

A number in mm · Z2 in drawing
20
ConnectionEF000443

Choose one value

Duct connection profile

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
