Heater, air duct, electric, round MC000365

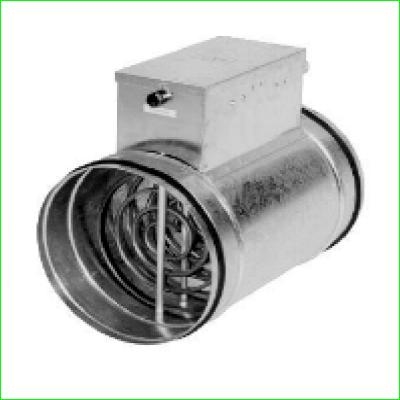

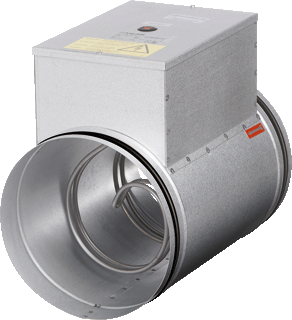

A heating device installed in round air ducts, using electricity to warm the air as it passes through the HVAC system.

Under construction Ventilation and flue gas components MG000043

/

Features 19

Class features

1
ModelEF000010

Choose one value

Round
2
DiameterEF000551

A number in mm · D in drawing
5
Height operating elementEF022273

A number in mm · E1 in drawing
6
Height 1EF010005

A number in mm · H1 in drawing
7
Height 2EF010006

A number in mm · H2 in drawing
12
LengthEF001438

A number in mm · L in drawing
13
Width 1EF023087

A number in mm · M1 in drawing
14
Width 2EF023088

A number in mm · M2 in drawing
15
Plate thicknessEF006112

A number in mm · s in drawing

Port 1

3
Nominal duct diameterEF020311

A number in mm · DN1 in drawing
8
Insert lengthEF020279

A number in mm · IL1 in drawing
10
Rim thicknessEF010038

A number in mm · k1 in drawing
16
Working length connection 1EF020153

A number in mm · Z1 in drawing
18
ConnectionEF000443

Choose one value

Insert end

Port 2

4
Nominal duct diameterEF020311

A number in mm · DN2 in drawing
9
Insert lengthEF020279

A number in mm · IL2 in drawing
11
Rim thicknessEF010038

A number in mm · k2 in drawing
17
Working length connection 2EF020154

A number in mm · Z2 in drawing
19
ConnectionEF000443

Choose one value

Insert end

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
