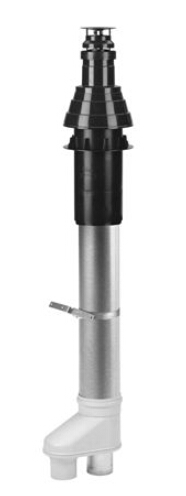

Flue gas roof duct (parallel)
Flue gas extraction and ventilation. Flue gas roof duct (parallel)
Code:
MC000368
Version:
Group:
Flue gas extraction and ventilation
MG000024Drawing
Features
01 |
Type of systemEF008552 - Alphanumeric | ||
02 |
D |
Outer duct diameter, flue (mm)EF022530 - Numeric | |
03 |
D1 |
Diameter (mm)EF000551 - Numeric | |
04 |
D2 |
Diameter cap (mm)EF001423 - Numeric | |
09 |
HOH |
Distance centre-to-centre (mm)EF020200 - Numeric | |
10 |
L1 |
Total length (mm)EF000369 - Numeric | |
11 |
L2 |
Length above roof (including cover) (mm)EF020009 - Numeric | |
12 |
L3 |
Length cap (mm)EF012738 - Numeric |
Features port 1
05 |
DN1 |
Nominal diameter (mm)EF005114 - Numeric | |
07 |
Do1 |
Outer pipe diameter (mm)EF006272 - Numeric | |
13 |
Q1 |
Length of connection 1 (mm)EF020151 - Numeric | |
15 |
s1 |
Wall thickness, connection 1 (mm)EF021603 - Numeric | |
17 |
Connection 1EF000321 - Alphanumeric |
Features port 2
06 |
DN2 |
Nominal diameter (mm)EF005114 - Numeric | |
08 |
Do2 |
Outer pipe diameter (mm)EF006272 - Numeric | |
14 |
Q2 |
Length of connection 2 (mm)EF020152 - Numeric | |
16 |
s2 |
Wall thickness, connection 2 (mm)EF021604 - Numeric | |
18 |
Connection 2EF000322 - Alphanumeric |
Synonyms
Flue gas roof duct (parallel)
