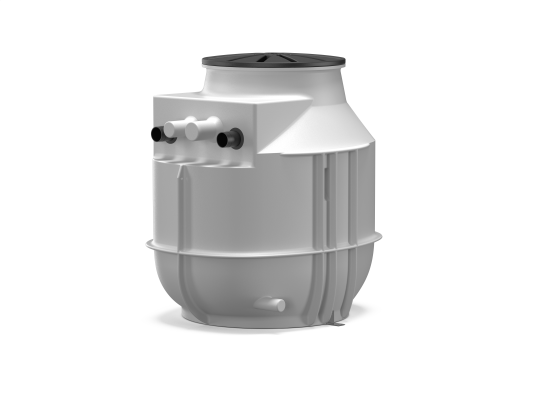

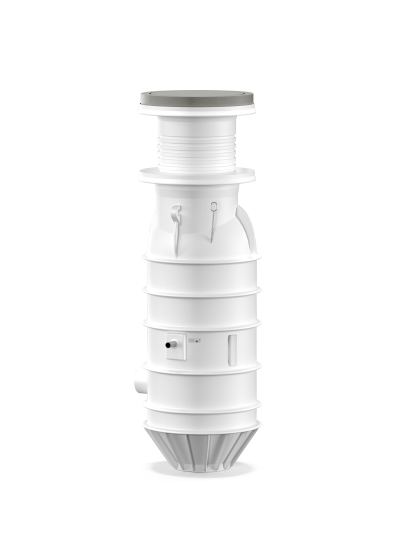

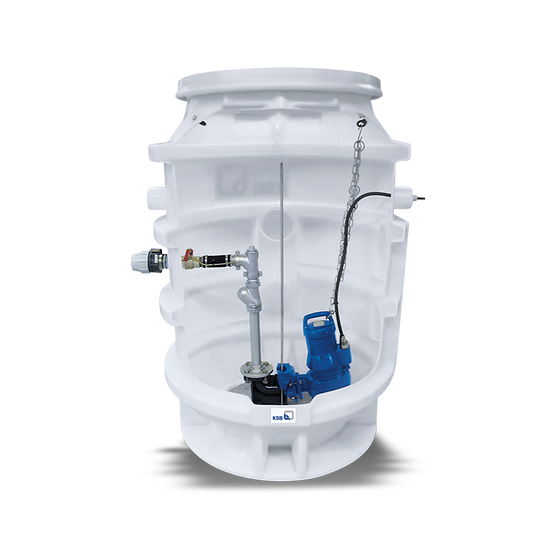

Sewage tank for wastewater pump MC000379

Published
Waste water MG000044

Features 40

Class features

  1. 13

    Outer diameterEF000015

    A number in mm · D in drawing

  2. 14

    Cover outer diameterEF024238

    A number in mm · d1 in drawing

  3. 23

    HeightEF000040

    A number in mm · H in drawing

  4. 24

    Height reservoirEF016248

    A number in mm · H1 in drawing

Port 1

  1. 1

    ConnectionEF000443

    Choose one value · 1 in drawing

    Slide sleeve
  2. 5

    Position connectionEF011006

    A coordinate in mm · CA1 in drawing

  3. 9

    Directional vector connectionEF011005

    A coordinate · DV1 in drawing

  4. 15

    Nominal diameterEF023191

    Choose one value · DN1 in drawing

    DN 50DN 65DN 70DN 75DN 80DN 90DN 100DN 110DN 125DN 150
  5. 19

    Outer pipe diameter connectionEF020208

    A number in mm · Do1 in drawing

  6. 25

    Connection lengthEF022519

    A number in mm · L1 in drawing

  7. 29

    Sleeve length (no longer used)EF010520

    A number in mm · P1 in drawing

  8. 33

    Wall thickness connectionEF010546

    A number in mm · s1 in drawing

  9. 37

    Working lengthEF006318

    A number in mm · Z1 in drawing

Port 2

  1. 2

    ConnectionEF000443

    Choose one value · 2 in drawing

    Slide sleeve
  2. 6

    Position connectionEF011006

    A coordinate in mm · CA2 in drawing

  3. 10

    Directional vector connectionEF011005

    A coordinate · DV2 in drawing

  4. 16

    Nominal diameterEF023191

    Choose one value · DN2 in drawing

    DN 50DN 65DN 70DN 75DN 80DN 90DN 100DN 110DN 125DN 150
  5. 20

    Outer pipe diameter connectionEF020208

    A number in mm · Do2 in drawing

  6. 26

    Connection lengthEF022519

    A number in mm · L2 in drawing

  7. 30

    Sleeve length (no longer used)EF010520

    A number in mm · P2 in drawing

  8. 34

    Wall thickness connectionEF010546

    A number in mm · s2 in drawing

  9. 38

    Working lengthEF006318

    A number in mm · Z2 in drawing

Port 3

  1. 3

    ConnectionEF000443

    Choose one value · 3 in drawing

    Slide sleeve
  2. 7

    Position connectionEF011006

    A coordinate in mm · CA3 in drawing

  3. 11

    Directional vector connectionEF011005

    A coordinate · DV3 in drawing

  4. 17

    Nominal diameterEF023191

    Choose one value · DN3 in drawing

    DN 50DN 65DN 70DN 75DN 80DN 90DN 100DN 110DN 125DN 150
  5. 21

    Outer pipe diameter connectionEF020208

    A number in mm · Do3 in drawing

  6. 27

    Connection lengthEF022519

    A number in mm · L3 in drawing

  7. 31

    Sleeve length (no longer used)EF010520

    A number in mm · P3 in drawing

  8. 35

    Wall thickness connectionEF010546

    A number in mm · s3 in drawing

  9. 39

    Working lengthEF006318

    A number in mm · Z3 in drawing

Port 4

  1. 4

    ConnectionEF000443

    Choose one value · 4 in drawing

    Slide sleeve
  2. 8

    Position connectionEF011006

    A coordinate in mm · CA4 in drawing

  3. 12

    Directional vector connectionEF011005

    A coordinate · DV4 in drawing

  4. 18

    Nominal diameterEF023191

    Choose one value · DN4 in drawing

    DN 50DN 65DN 70DN 75DN 80DN 90DN 100DN 110DN 125DN 150
  5. 22

    Outer pipe diameter connectionEF020208

    A number in mm · Do4 in drawing

  6. 28

    Connection lengthEF022519

    A number in mm · L4 in drawing

  7. 32

    Sleeve length (no longer used)EF010520

    A number in mm · P4 in drawing

  8. 36

    Wall thickness connectionEF010546

    A number in mm · s4 in drawing

  9. 40

    Working lengthEF006318

    A number in mm · Z4 in drawing

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
