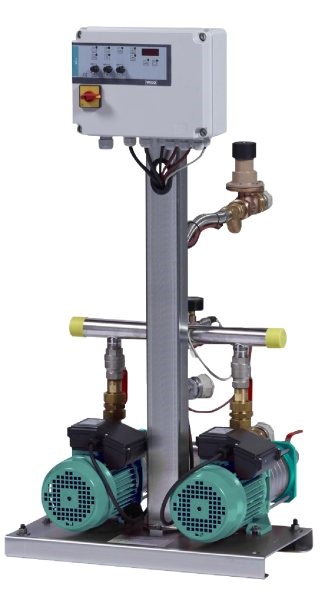

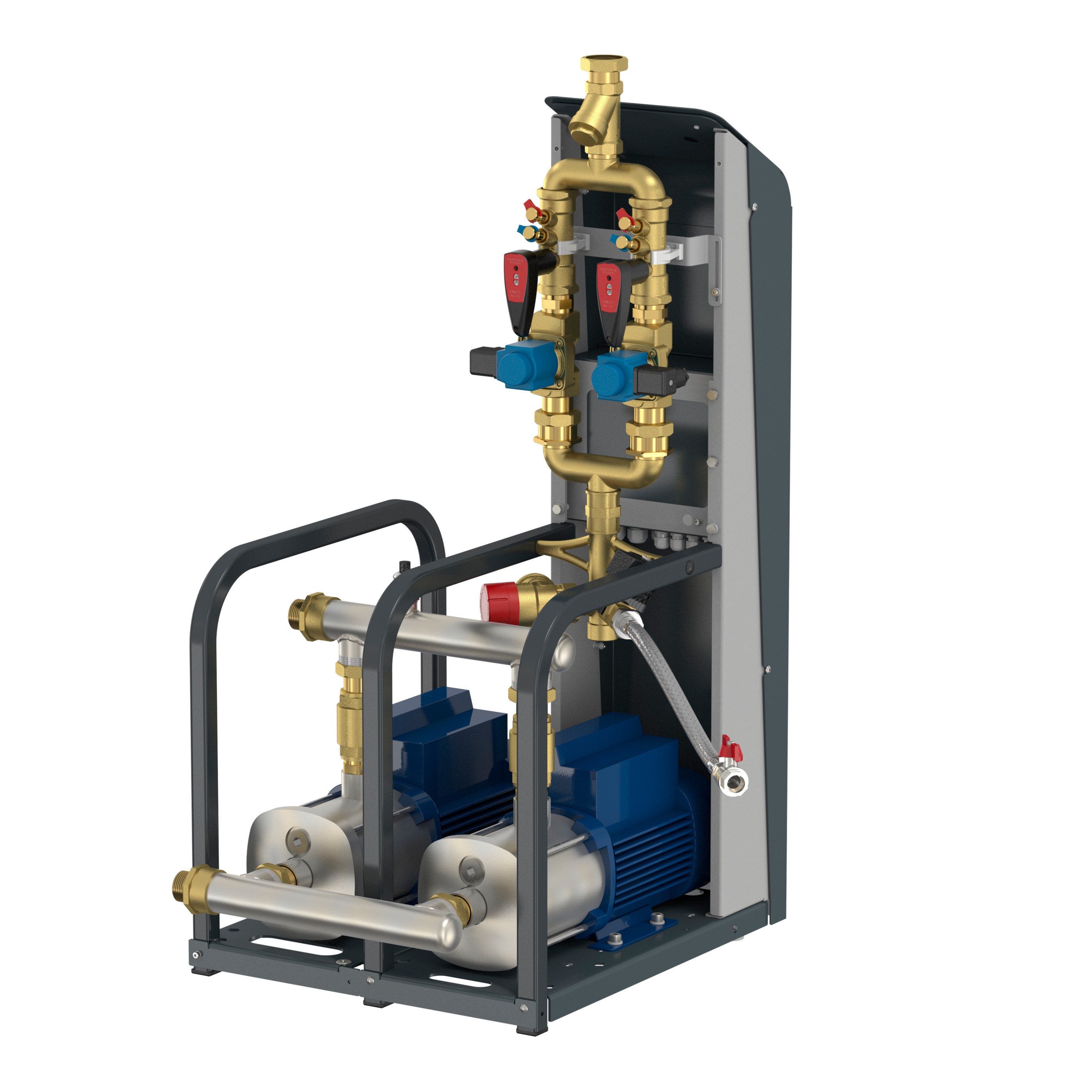

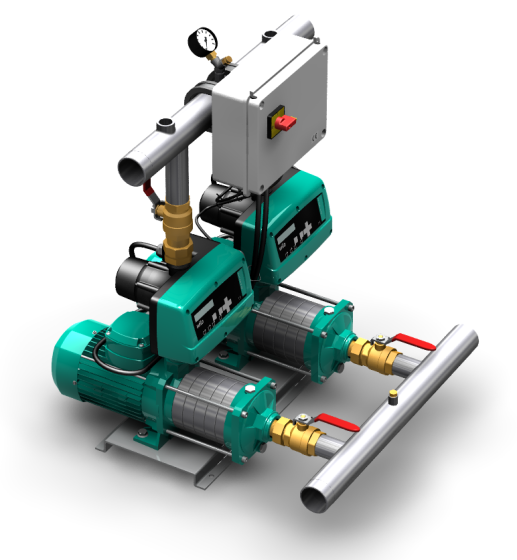

Double horizontal booster without vessel MC000391

A water pressure-boosting system featuring two horizontally mounted pumps, operating without an expansion vessel for pressure stabilization.

Under construction
Water - Supply and wastewater pumps MG000035

Features 83

Class features

  1. 20

    Thickness foundation plateEF011562

    A number in mm · Df in drawing

  2. 21

    Diameter motorEF010724

    A number in mm · DM in drawing

  3. 33

    HeightEF000040

    A number in mm · H in drawing

  4. 38

    Height centre pumpEF016315

    A number in mm · h5 in drawing

  5. 39

    Height electrical cabinetEF010840

    A number in mm · h6 in drawing

  6. 43

    LengthEF001438

    A number in mm · L in drawing

  7. 48

    Foundation plate lengthEF023097

    A number in mm · Le in drawing

  8. 49

    Distance to centre connectionEF010708

    A number in mm · Le1 in drawing

  9. 50

    Centre-to-centre (double) pumpEF010739

    A number in mm · Le2 in drawing

  10. 51

    Thickness electrical cabinetEF010750

    A number in mm · Le3 in drawing

  11. 52

    Width electrical cabinetEF010751

    A number in mm · Le4 in drawing

  12. 53

    Distance to operating elementEF010523

    A number in mm · Le7 in drawing

  13. 54

    Pump lengthEF023096

    A number in mm · Le9 in drawing

  14. 55

    Length centre to end of pumpEF016256

    A number in mm · Le10 in drawing

  15. 58

    Distance to centre pumpEF016284

    A number in mm · Le13 in drawing

  16. 59

    Number of bolt holesEF021779

    A number · n1 in drawing

  17. 62

    Number of pumpsEF023148

    A number · np in drawing

  18. 75

    WidthEF000008

    A number in mm · W in drawing

  19. 76

    Centre-to-centre distance of connectionsEF021151

    A number in mm · w1 in drawing

  20. 77

    Foundation plate widthEF023098

    A number in mm · w2 in drawing

  21. 78

    Distance foot control box to side foot plateEF016287

    A number in mm · w3 in drawing

  22. 79

    Distance to rear of pumpEF016285

    A number in mm · w4 in drawing

Port 1

  1. 1

    Connection inlet sideEF025116

    Choose one value

    Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)Flange
  2. 5

    Angle to first bolt holeEF010524

    A number in ° · a1 in drawing

  3. 8

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b1 in drawing

  4. 11

    Outer diameter of flangeEF021531

    A number in mm · D1 in drawing

  5. 14

    Diameter bolt holeEF021780

    A number in mm · d2-1 in drawing

  6. 17

    Diameter sealing edgeEF010527

    A number in mm · d4-1 in drawing

  7. 22

    Nominal diameter connection inlet sideEF025117

    Choose one value · DN1 in drawing

    1 inch (25)DN 251 1/4 inch (32)DN 321 1/2 inch (40)DN 402 inch (50)DN 502 1/2 inch (65)DN 65
  8. 26

    Outer pipe diameter connection inlet sideEF025503

    A number in mm · Do1 in drawing

  9. 30

    Thickness sealing edgeEF010528

    A number in mm · f1 in drawing

  10. 34

    Height to centre connectionEF010771

    A number in mm · h1 in drawing

  11. 40

    Pitch circleEF021643

    A number in mm · k1 in drawing

  12. 44

    Connection lengthEF022519

    A number in mm · L1 in drawing

  13. 63

    Sleeve length (no longer used)EF010520

    A number in mm · P1 in drawing

  14. 67

    Length gusset/threadEF010521

    A number in mm · Q1 in drawing

  15. 71

    Wall thicknessEF000229

    A number in mm · s1 in drawing

  16. 80

    Working lengthEF006318

    A number in mm · Z1 in drawing

Port 2

  1. 2

    Connection outlet sideEF025977

    Choose one value

    Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)Flange
  2. 6

    Angle to first bolt holeEF010524

    A number in ° · a2 in drawing

  3. 9

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b2 in drawing

  4. 12

    Outer diameter of flangeEF021531

    A number in mm · D2 in drawing

  5. 15

    Diameter bolt holeEF021780

    A number in mm · d2-2 in drawing

  6. 18

    Diameter sealing edgeEF010527

    A number in mm · d4-2 in drawing

  7. 23

    Nominal diameter connection outlet sideEF025118

    Choose one value · DN2 in drawing

    1 inch (25)DN 251 1/4 inch (32)DN 321 1/2 inch (40)DN 402 inch (50)DN 502 1/2 inch (65)DN 65
  8. 27

    Outer pipe diameter connection outlet sideEF025504

    A number in mm · Do2 in drawing

  9. 31

    Thickness sealing edgeEF010528

    A number in mm · f2 in drawing

  10. 35

    Height to centre connectionEF010771

    A number in mm · h2 in drawing

  11. 41

    Pitch circleEF021643

    A number in mm · k2 in drawing

  12. 45

    Connection lengthEF022519

    A number in mm · L2 in drawing

  13. 56

    Distance to centre connectionEF010708

    A number in mm · Le11 in drawing

  14. 60

    Number of bolt holesEF021779

    A number · n2 in drawing

  15. 64

    Sleeve length (no longer used)EF010520

    A number in mm · P2 in drawing

  16. 68

    Length gusset/threadEF010521

    A number in mm · Q2 in drawing

  17. 72

    Wall thicknessEF000229

    A number in mm · s2 in drawing

  18. 81

    Working lengthEF006318

    A number in mm · Z2 in drawing

Port 3

  1. 3

    Connection outlet sideEF025977

    Choose one value

    Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)Flange
  2. 7

    Angle to first bolt holeEF010524

    A number in ° · a3 in drawing

  3. 10

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b3 in drawing

  4. 13

    Outer diameter of flangeEF021531

    A number in mm · D3 in drawing

  5. 16

    Diameter bolt holeEF021780

    A number in mm · d2-3 in drawing

  6. 19

    Diameter sealing edgeEF010527

    A number in mm · d4-3 in drawing

  7. 24

    Nominal diameter connection outlet sideEF025118

    Choose one value · DN3 in drawing

    1 inch (25)DN 251 1/4 inch (32)DN 321 1/2 inch (40)DN 402 inch (50)DN 502 1/2 inch (65)DN 65
  8. 28

    Outer pipe diameter connection outlet sideEF025504

    A number in mm · Do3 in drawing

  9. 32

    Thickness sealing edgeEF010528

    A number in mm · f3 in drawing

  10. 36

    Height to centre connectionEF010771

    A number in mm · h3 in drawing

  11. 42

    Pitch circleEF021643

    A number in mm · k3 in drawing

  12. 46

    Connection lengthEF022519

    A number in mm · L3 in drawing

  13. 61

    Number of bolt holesEF021779

    A number · n3 in drawing

  14. 65

    Sleeve length (no longer used)EF010520

    A number in mm · P3 in drawing

  15. 69

    Length gusset/threadEF010521

    A number in mm · Q3 in drawing

  16. 73

    Wall thicknessEF000229

    A number in mm · s3 in drawing

  17. 82

    Working lengthEF006318

    A number in mm · Z3 in drawing

Port 4

  1. 4

    Connection outlet sideEF025977

    Choose one value

    Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)
  2. 25

    Nominal diameter connection outlet sideEF025118

    Choose one value · DN4 in drawing

    1/2 inch (15)3/4 inch (20)1 inch (25)DN 251 1/4 inch (32)DN 321 1/2 inch (40)DN 402 inch (50)DN 50
  3. 29

    Outer pipe diameter connection outlet sideEF025504

    A number in mm · Do4 in drawing

  4. 37

    Height to centre connectionEF010771

    A number in mm · h4 in drawing

  5. 47

    Connection lengthEF022519

    A number in mm · L4 in drawing

  6. 57

    Distance to centre connectionEF010708

    A number in mm · Le12 in drawing

  7. 66

    Sleeve length (no longer used)EF010520

    A number in mm · P4 in drawing

  8. 70

    Length gusset/threadEF010521

    A number in mm · Q4 in drawing

  9. 74

    Wall thicknessEF000229

    A number in mm · s4 in drawing

  10. 83

    Working lengthEF006318

    A number in mm · Z4 in drawing

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
