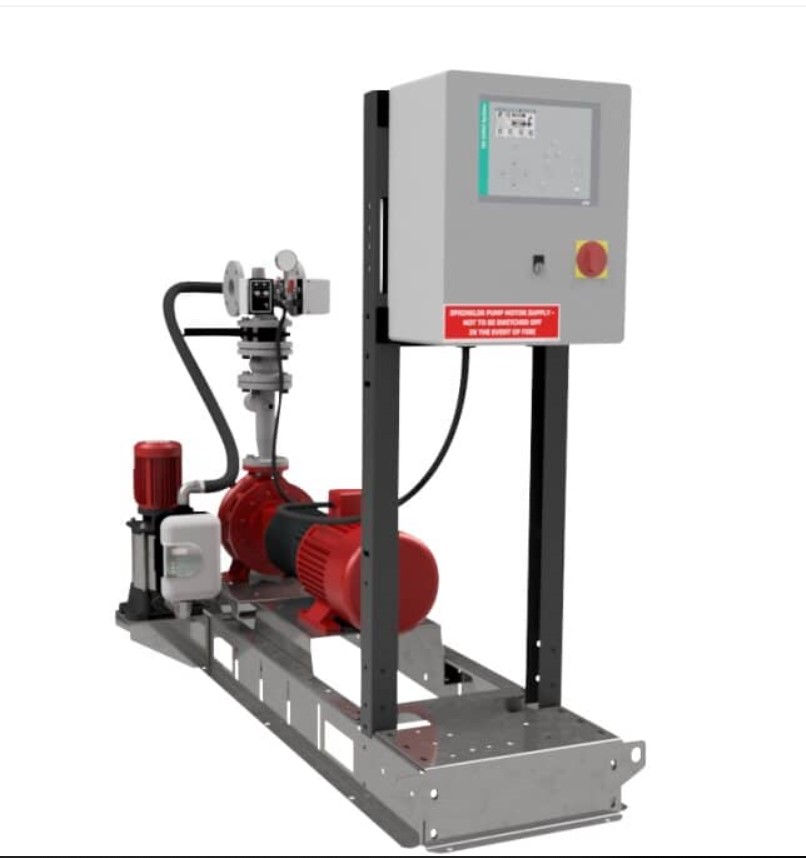

Booster set, fire protection, single-pump, with jockey pump MC000394

A firefighting system that includes one booster pump for high water pressure and a jockey pump to maintain consistent pressure when the main pump is not in use.

Under construction
Water - Supply and wastewater pumps MG000035

Features 100

Class features

  1. 9

    DieselpumpEF016290

    Yes or no

    YesNo
  2. 30

    Thickness foundation plateEF011562

    A number in mm · Df in drawing

  3. 51

    Height electrical cabinetEF010840

    A number in mm · H in drawing

  4. 53

    Height till headerEF016291

    A number in mm · h2 in drawing

  5. 57

    Height electrical cabinet 1EF016293

    A number in mm · h13 in drawing

  6. 58

    Height electrical cabinet 2EF016294

    A number in mm · h14 in drawing

  7. 63

    Foundation plate lengthEF023097

    A number in mm · L in drawing

  8. 72

    Length till end of pumpEF016296

    A number in mm · Le1 in drawing

  9. 73

    Distance to centre connectionEF010708

    A number in mm · Le2 in drawing

  10. 74

    Distance Jockey pumpEF016297

    A number in mm · Le3 in drawing

  11. 75

    Distance to rear of cabinetEF016298

    A number in mm · Le5 in drawing

  12. 76

    Thickness electrical cabinetEF010750

    A number in mm · Le6 in drawing

  13. 91

    Foundation plate widthEF023098

    A number in mm · W in drawing

  14. 92

    Distance to centre pumpEF016284

    A number in mm · w1 in drawing

  15. 95

    Width to jockey pumpEF016299

    A number in mm · w8 in drawing

  16. 96

    Distance to side cabinetEF016300

    A number in mm · w13 in drawing

  17. 97

    Width electrical cabinetEF010751

    A number in mm · w14 in drawing

  18. 98

    Distance to side cabinet 2EF016301

    A number in mm · w15 in drawing

  19. 99

    Width electrical cabinet 2EF011251

    A number in mm · w16 in drawing

Port 1

  1. 1

    Connection inlet sideEF025116

    Choose one value

    Flange
  2. 10

    Angle to first bolt holeEF010524

    A number in ° · a1 in drawing

  3. 14

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b1 in drawing

  4. 18

    Outer diameter of flangeEF021531

    A number in mm · D1 in drawing

  5. 22

    Diameter bolt holeEF021780

    A number in mm · d2-1 in drawing

  6. 26

    Diameter sealing edgeEF010527

    A number in mm · d4-1 in drawing

  7. 31

    Nominal diameter connection inlet sideEF025117

    Choose one value · DN1 in drawing

    DN 50DN 65DN 80DN 100DN 125DN 150DN 200DN 250
  8. 39

    Outer pipe diameter connection inlet sideEF025503

    A number in mm · Do1 in drawing

  9. 47

    Thickness sealing edgeEF010528

    A number in mm · f1 in drawing

  10. 52

    Height to centre connectionEF010771

    A number in mm · h1 in drawing

  11. 59

    Pitch circleEF021643

    A number in mm · k1 in drawing

  12. 64

    Connection lengthEF022519

    A number in mm · L1 in drawing

  13. 77

    Number of bolt holesEF021779

    A number · n1 in drawing

Port 2

  1. 2

    Connection outlet sideEF025977

    Choose one value

    Flange
  2. 11

    Angle to first bolt holeEF010524

    A number in ° · a2 in drawing

  3. 15

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b2 in drawing

  4. 19

    Outer diameter of flangeEF021531

    A number in mm · D2 in drawing

  5. 23

    Diameter bolt holeEF021780

    A number in mm · d2-2 in drawing

  6. 27

    Diameter sealing edgeEF010527

    A number in mm · d4-2 in drawing

  7. 32

    Nominal diameter connection outlet sideEF025118

    Choose one value · DN2 in drawing

    DN 50DN 65DN 80DN 100DN 125DN 150DN 200DN 250
  8. 40

    Outer pipe diameter connection outlet sideEF025504

    A number in mm · Do2 in drawing

  9. 48

    Thickness sealing edgeEF010528

    A number in mm · f2 in drawing

  10. 60

    Pitch circleEF021643

    A number in mm · k2 in drawing

  11. 65

    Connection lengthEF022519

    A number in mm · L2 in drawing

  12. 78

    Number of bolt holesEF021779

    A number · n2 in drawing

Port 3

  1. 3

    Connection outlet sideEF025977

    Choose one value

    Flange
  2. 12

    Angle to first bolt holeEF010524

    A number in ° · a3 in drawing

  3. 16

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b3 in drawing

  4. 20

    Outer diameter of flangeEF021531

    A number in mm · D3 in drawing

  5. 24

    Diameter bolt holeEF021780

    A number in mm · d2-3 in drawing

  6. 28

    Diameter sealing edgeEF010527

    A number in mm · d4-3 in drawing

  7. 33

    Nominal diameter connection outlet sideEF025118

    Choose one value · DN3 in drawing

    DN 50DN 65DN 80DN 100DN 125DN 150DN 200DN 250
  8. 41

    Outer pipe diameter connection outlet sideEF025504

    A number in mm · Do3 in drawing

  9. 49

    Thickness sealing edgeEF010528

    A number in mm · f3 in drawing

  10. 61

    Pitch circleEF021643

    A number in mm · k3 in drawing

  11. 66

    Connection lengthEF022519

    A number in mm · L3 in drawing

  12. 79

    Number of bolt holesEF021779

    A number · n3 in drawing

Port 4

  1. 4

    ConnectionEF000443

    Choose one value

    External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)External thread flare (UNF)
  2. 34

    Nominal diameter connectionEF025620

    Choose one value · DN4 in drawing

    1/2 inch (15)3/4 inch (20)1 inch (25)1 1/4 inch (32)1 1/2 inch (40)2 inch (50)2 1/2 inch (65)
  3. 42

    Outer pipe diameter connectionEF020208

    A number in mm · Do4 in drawing

  4. 67

    Connection lengthEF022519

    A number in mm · L4 in drawing

  5. 82

    Length gusset/threadEF010521

    A number in mm · Q4 in drawing

  6. 86

    Wall thickness connectionEF010546

    A number in mm · s4 in drawing

  7. 93

    Distance to centre connectionEF010708

    A number in mm · w4 in drawing

Port 5

  1. 5

    ConnectionEF000443

    Choose one value

    Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread flare (UNF)
  2. 35

    Nominal diameter connectionEF025620

    Choose one value · DN5 in drawing

    1/2 inch (15)3/4 inch (20)1 inch (25)1 1/4 inch (32)1 1/2 inch (40)2 inch (50)2 1/2 inch (65)
  3. 43

    Outer pipe diameter connectionEF020208

    A number in mm · Do5 in drawing

  4. 68

    Connection lengthEF022519

    A number in mm · L5 in drawing

  5. 81

    Sleeve length (no longer used)EF010520

    A number in mm · P5 in drawing

  6. 87

    Wall thickness connectionEF010546

    A number in mm · s5 in drawing

  7. 94

    Distance to centre connectionEF010708

    A number in mm · w5 in drawing

  8. 100

    Working lengthEF006318

    A number in mm · Z5 in drawing

Port 6

  1. 6

    ConnectionEF000443

    Choose one value

    External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)External thread flare (UNF)
  2. 36

    Nominal diameter connectionEF025620

    Choose one value · DN6 in drawing

    1/2 inch (15)3/4 inch (20)1 inch (25)1 1/4 inch (32)1 1/2 inch (40)2 inch (50)2 1/2 inch (65)
  3. 44

    Outer pipe diameter connectionEF020208

    A number in mm · Do6 in drawing

  4. 54

    Height to centre connectionEF010771

    A number in mm · h6 in drawing

  5. 69

    Connection lengthEF022519

    A number in mm · L6 in drawing

  6. 83

    Length gusset/threadEF010521

    A number in mm · Q6 in drawing

  7. 88

    Wall thickness connectionEF010546

    A number in mm · s6 in drawing

Port 7

  1. 7

    ConnectionEF000443

    Choose one value

    FlangeExternal thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)External thread flare (UNF)
  2. 13

    Angle to first bolt holeEF010524

    A number in ° · a7 in drawing

  3. 17

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b7 in drawing

  4. 21

    Outer diameter of flangeEF021531

    A number in mm · D7 in drawing

  5. 25

    Diameter bolt holeEF021780

    A number in mm · d2-7 in drawing

  6. 29

    Diameter sealing edgeEF010527

    A number in mm · d4-7 in drawing

  7. 37

    Nominal diameter connectionEF025620

    Choose one value · DN7 in drawing

    1/2 inch (15)3/4 inch (20)1 inch (25)1 1/4 inch (32)1 1/2 inch (40)2 inch (50)DN 502 1/2 inch (65)DN 653 inch (80)
  8. 45

    Outer pipe diameter connectionEF020208

    A number in mm · Do7 in drawing

  9. 50

    Thickness sealing edgeEF010528

    A number in mm · f7 in drawing

  10. 55

    Height to centre connectionEF010771

    A number in mm · h7 in drawing

  11. 62

    Pitch circleEF021643

    A number in mm · k7 in drawing

  12. 70

    Connection lengthEF022519

    A number in mm · L7 in drawing

  13. 80

    Number of bolt holesEF021779

    A number · n7 in drawing

  14. 84

    Length gusset/threadEF010521

    A number in mm · Q7 in drawing

  15. 89

    Wall thickness connectionEF010546

    A number in mm · s7 in drawing

Port 8

  1. 8

    ConnectionEF000443

    Choose one value

    External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)External thread flare (UNF)
  2. 38

    Nominal diameter connectionEF025620

    Choose one value · DN8 in drawing

    1/2 inch (15)3/4 inch (20)1 inch (25)1 1/4 inch (32)1 1/2 inch (40)2 inch (50)
  3. 46

    Outer pipe diameter connectionEF020208

    A number in mm · Do8 in drawing

  4. 56

    Height to centre connectionEF010771

    A number in mm · h8 in drawing

  5. 71

    Connection lengthEF022519

    A number in mm · L8 in drawing

  6. 85

    Length gusset/threadEF010521

    A number in mm · Q8 in drawing

  7. 90

    Wall thickness connectionEF010546

    A number in mm · s8 in drawing

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
