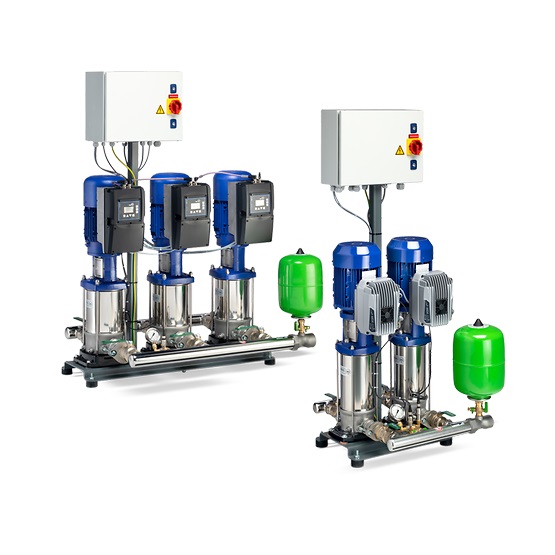

MC000397 - Booster with pole cabinet

Features

25	De	Diameter expansion vessel (mm) EF016309 - Numeric
26	DM	Diameter motor (mm) EF010724 - Numeric
39	FH	Frame height (mm) EF021570 - Numeric
40	H	Height (mm) EF000040 - Numeric
45	h5	Height expansion vessel (mm) EF016401 - Numeric
46	h6	Height electrical cabinet (mm) EF010840 - Numeric
47	h7	Distance to bottom side vessel (mm) EF010873 - Numeric
48	HP	Pump height (mm) EF023086 - Numeric
53	L	Foundation plate length (mm) EF023097 - Numeric
58	L5	Distance to centre expansion vessel (mm) EF016311 - Numeric
59	Le1	Distance to side foundation plate (mm) EF016289 - Numeric
60	Le2	Centre-to-centre (double) pump (mm) EF010739 - Numeric
61	Le3	Thickness electrical cabinet (mm) EF010750 - Numeric
62	Le4	Width electrical cabinet (mm) EF010751 - Numeric
63	Le7	Distance to side cabinet (mm) EF016300 - Numeric
68	np	Number of pumps EF023148 - Numeric
77	w1	Centre-to-centre distance of connections (mm) EF021151 - Numeric
78	w2	Foundation plate width (mm) EF023098 - Numeric
79	w3	Distance backside cabinet (mm) EF016298 - Numeric
81	w5	Distance to centre pump (mm) EF016284 - Numeric

Features port 1

01		Connection inlet side EF025116 - Alphanumeric
05	a1	Angle to first bolt hole (°) EF010524 - Numeric
09	b1	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
13	D1	Outer diameter of flange (mm) EF021531 - Numeric
17	d2-1	Diameter bolt hole (mm) EF021780 - Numeric
21	d4-1	Diameter sealing edge (mm) EF010527 - Numeric
27	DN1	Nominal diameter connection inlet side EF025117 - Alphanumeric
31	Do1	Outer pipe diameter connection inlet side (mm) EF025503 - Numeric
35	f1	Thickness sealing edge (mm) EF010528 - Numeric
41	h1	Height to centre connection (mm) EF010771 - Numeric
49	k1	Pitch circle (mm) EF021643 - Numeric
54	L1	Connection length (mm) EF022519 - Numeric
64	n1	Number of bolt holes EF021779 - Numeric
69	Q1	Length gusset/thread (mm) EF010521 - Numeric
73	s1	Wall thickness connection (mm) EF010546 - Numeric

Features port 2

02		Connection inlet side EF025116 - Alphanumeric
06	a2	Angle to first bolt hole (°) EF010524 - Numeric
10	b2	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
14	D2	Outer diameter of flange (mm) EF021531 - Numeric
18	d2-2	Diameter bolt hole (mm) EF021780 - Numeric
22	d4-2	Diameter sealing edge (mm) EF010527 - Numeric
28	DN2	Nominal diameter connection inlet side EF025117 - Alphanumeric
32	Do2	Outer pipe diameter connection inlet side (mm) EF025503 - Numeric
36	f2	Thickness sealing edge (mm) EF010528 - Numeric
42	h2	Height to centre connection (mm) EF010771 - Numeric
50	k2	Pitch circle (mm) EF021643 - Numeric
55	L2	Connection length (mm) EF022519 - Numeric
65	n2	Number of bolt holes EF021779 - Numeric
70	Q2	Length gusset/thread (mm) EF010521 - Numeric
74	s2	Wall thickness connection (mm) EF010546 - Numeric

Features port 3

03		Connection outlet side EF025977 - Alphanumeric
07	a3	Angle to first bolt hole (°) EF010524 - Numeric
11	b3	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
15	D3	Outer diameter of flange (mm) EF021531 - Numeric
19	d2-3	Diameter bolt hole (mm) EF021780 - Numeric
23	d4-3	Diameter sealing edge (mm) EF010527 - Numeric
29	DN3	Nominal diameter connection outlet side EF025118 - Alphanumeric
33	Do3	Outer pipe diameter connection outlet side (mm) EF025504 - Numeric
37	f3	Thickness sealing edge (mm) EF010528 - Numeric
43	h3	Height to centre connection (mm) EF010771 - Numeric
51	k3	Pitch circle (mm) EF021643 - Numeric
56	L3	Connection length (mm) EF022519 - Numeric
66	n3	Number of bolt holes EF021779 - Numeric
71	Q3	Length gusset/thread (mm) EF010521 - Numeric
75	s3	Wall thickness connection (mm) EF010546 - Numeric

Features port 4

04		Connection outlet side EF025977 - Alphanumeric
08	a4	Angle to first bolt hole (°) EF010524 - Numeric
12	b4	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
16	D4	Outer diameter of flange (mm) EF021531 - Numeric
20	d2-4	Diameter bolt hole (mm) EF021780 - Numeric
24	d4-4	Diameter sealing edge (mm) EF010527 - Numeric
30	DN4	Nominal diameter connection outlet side EF025118 - Alphanumeric
34	Do4	Outer pipe diameter connection outlet side (mm) EF025504 - Numeric
38	f4	Thickness sealing edge (mm) EF010528 - Numeric
44	h4	Height to centre connection (mm) EF010771 - Numeric
52	k4	Pitch circle (mm) EF021643 - Numeric
57	L4	Connection length (mm) EF022519 - Numeric
67	n4	Number of bolt holes EF021779 - Numeric
72	Q4	Length gusset/thread (mm) EF010521 - Numeric
76	s4	Wall thickness connection (mm) EF010546 - Numeric
80	w4	Distance to centre connection (mm) EF010708 - Numeric
