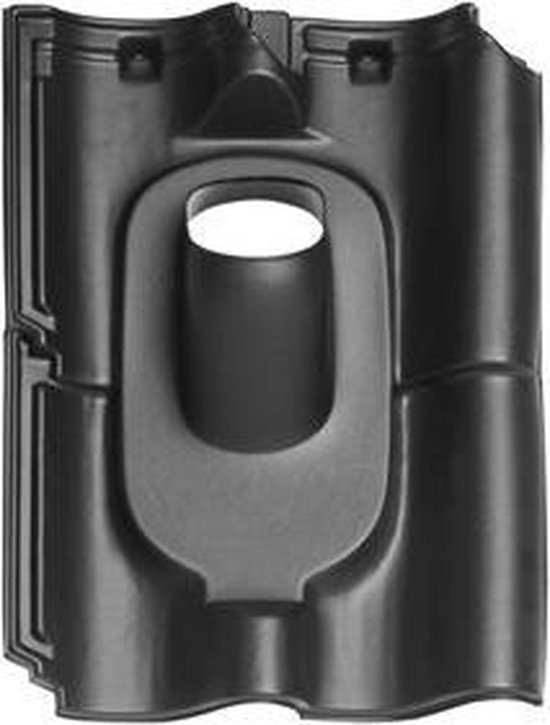

Feed-through roof tile MC000404

Published
Hydronic - Flue gas and combustion air systems MG000024

Features 13

Class features

  1. 1

    Profile shapeEF005179

    Choose one value

    Cover flashingProfiled/hollowSingle curvedDouble curvedFlat
  2. 2

    SizeEF000088

    Choose one value

    Whole roof tileTwo roof tilesFour roof tiles
  3. 3

    Roof pitchEF020004

    A range, from and to, in ° · a in drawing

  4. 4

    Default angleEF015223

    A number in ° · a in drawing

  5. 6

    WidthEF000008

    A number in mm · E in drawing

  6. 7

    Covering widthEF010363

    A range, from and to, in mm · Ec in drawing

  7. 8

    Width (effective dimension)EF011644

    A number in mm · Ec in drawing

  8. 9

    LengthEF001438

    A number in mm · L in drawing

  9. 10

    Distance feed-throughEF011427

    A number in mm · L1 in drawing

  10. 11

    Total heightEF001761

    A number in mm · H in drawing

  11. 12

    Tile heightEF014577

    A number in mm · H1 in drawing

Port 1

  1. 5

    System diameterEF024327

    A number in mm · DN in drawing

  2. 13

    Inner width (no longer used)EF010004

    A number in mm · Wi in drawing

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
