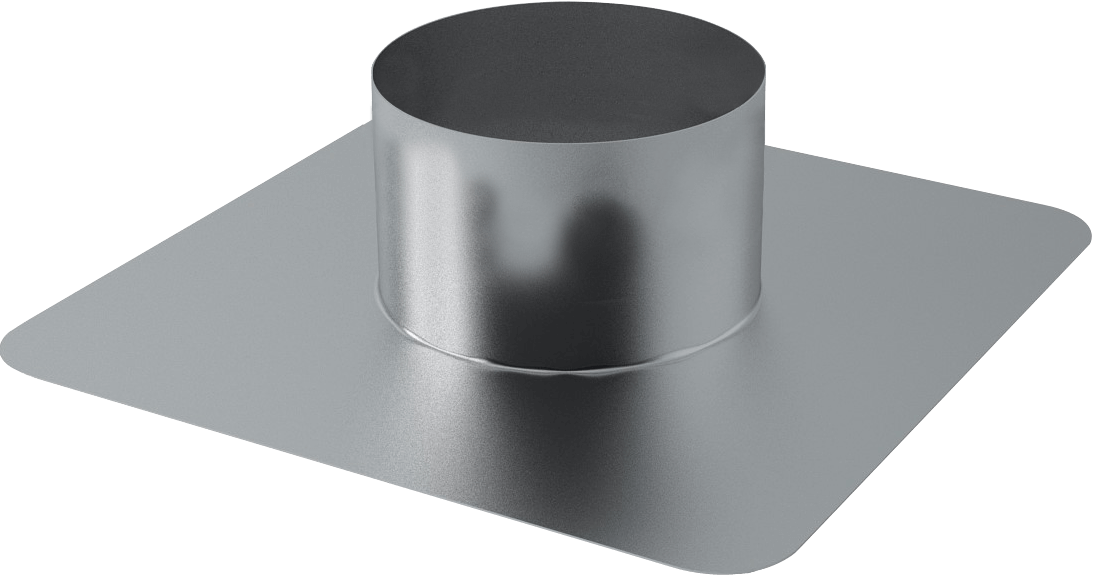

Roof flashing, universal
Code
MC000405Version
1
Group
Hydronic - Flue gas and combustion air systems (MG000024)Release
Drawing
Features
01 | Shape EF000051 - Alphanumeric | ||
03 | D | Diameter (mm) EF000551 - Numeric | |
04 | Dr | Diameter roof flashing (mm) EF021537 - Numeric | |
05 | W | Width roof flashing (mm) EF021493 - Numeric | |
06 | L | Length roof flashing (mm) EF021494 - Numeric | |
08 | H | Height (mm) EF000040 - Numeric | |
09 | s | Material thickness (mm) EF000386 - Numeric | |
11 | Dt | Top end diameter (mm) EF001285 - Numeric |
Features port 1
02 | DN1 | Diameter feed-through (mm) EF001072 - Numeric | |
07 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
10 | Do1 | Outer pipe diameter connection 1 (mm) EF020122 - Numeric |
Related productclasses
Synonyms
Roof flashing, universal
