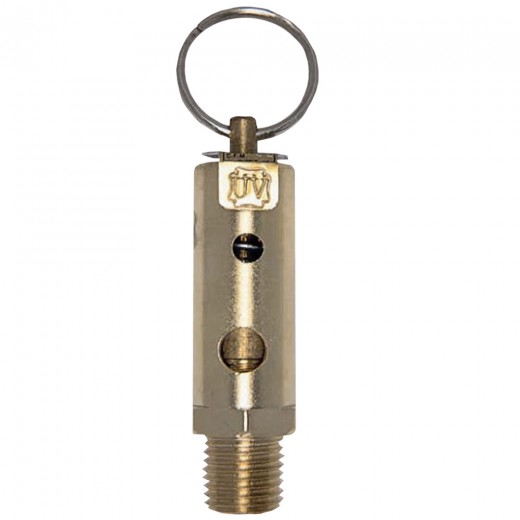

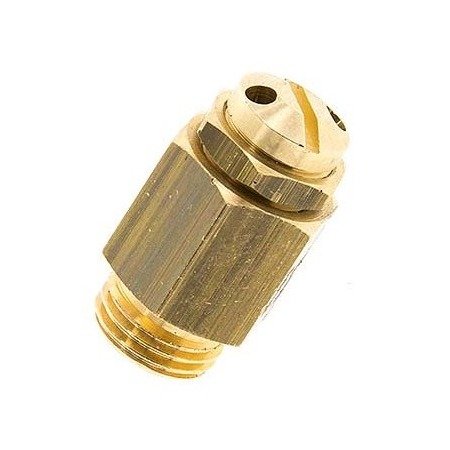

Spring-loaded valve (straight) MC000418

A valve that uses a spring mechanism to control fluid flow in a straight-line path, automatically closing or opening based on pressure changes.

Under construction
Hydronic - Valves and control components MG000042

Features 7

Class features

  1. 1

    Housing diameterEF002471

    A number in mm · D in drawing

  2. 2

    Housing heightEF020280

    A number in mm · H in drawing

Port 1

  1. 3

    ConnectionEF000443

    Choose one value

    External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)External thread flare (UNF)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread flare (UNF)
  2. 4

    Nominal diameterEF023191

    Choose one value · DN1 in drawing

    1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)
  3. 5

    Outer pipe diameter connectionEF020208

    A number in mm · Do1 in drawing

  4. 6

    Connection lengthEF022519

    A number in mm · L1 in drawing

  5. 7

    Working length connectionEF016476

    A number in mm · Z1 in drawing
