Concentric bend flue gas/air supply MC000419

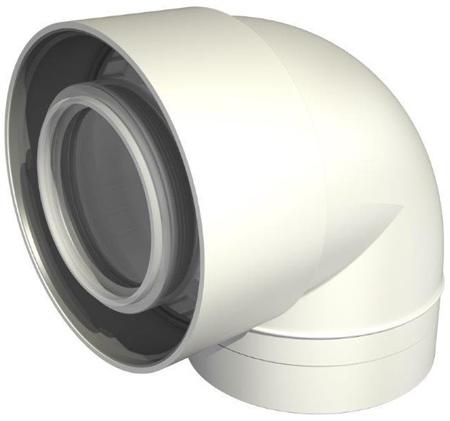

A curved pipe component with two enclosed channels is used to direct exhaust gases and fresh air in opposite directions within a ventilation system.
Features 16
Class features
- 1
ShapeEF000051
Choose one value
BendInspection piece, bend - 4
Bend angleEF005431
A number in ° · a in drawing
- 13
Centre line radiusEF026376
A number in mm · Rh in drawing
- 14
Wall thickness outer pipeEF024060
A number in mm · s1 in drawing
- 15
Wall thickness inner pipeEF024059
A number in mm · s2 in drawing
Port 1
- 2
Connection 1EF000321
Choose one value
Slide end - 5
Diameter inner pipeEF025217
A number in mm · Dd1 in drawing
- 7
Diameter outer pipeEF016435
A number in mm · Dd1-2 in drawing
- 9
Connection lengthEF022519
A number in mm · L1 in drawing
- 12
Slide lengthEF023640
A number in mm · Q1 in drawing
Port 2
- 3
Connection 2EF000322
Choose one value
Sleeve with seal - 6
Diameter inner pipeEF025217
A number in mm · Dd2 in drawing
- 8
Diameter outer pipeEF016435
A number in mm · Dd2-2 in drawing
- 10
Connection lengthEF022519
A number in mm · L2 in drawing
- 11
Sleeve length (no longer used)EF010520
A number in mm · P2 in drawing
- 16
Working lengthEF006318
A number in mm · Z2 in drawing
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
