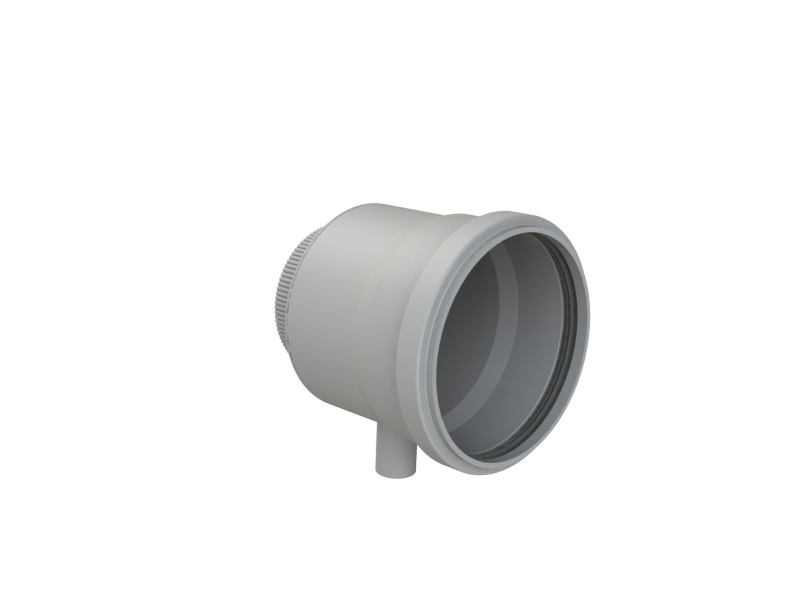

Concentric flue gas/air supply form piece, 1 connection
Code
MC000420Version
1
Group
Hydronic - Flue gas and combustion air systems (MG000024)Release
Drawing
Features
01 | Shape EF000051 - Alphanumeric |
Features port 1
02 | Connection EF000443 - Alphanumeric | ||
03 | Dd1 | Diameter inner pipe (mm) EF025217 - Numeric | |
04 | Dd1-2 | Diameter outer pipe (mm) EF016435 - Numeric | |
05 | L1 | Connection length (mm) EF022519 - Numeric | |
06 | Z1 | Working length connection (mm) EF016476 - Numeric |
Related productclasses
Synonyms
Concentric flue gas/air supply form piece, 1 connection
Cover for concentric flue gas system
Flue gas cover cap
