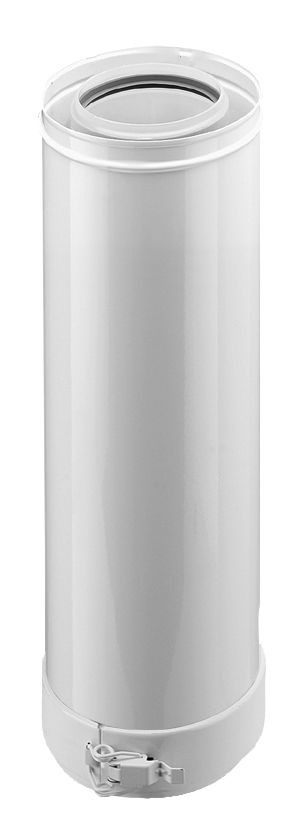

Concentric flue gas/air pipe
Code
MC000421Version
1
Group
Hydronic - Flue gas and combustion air systems (MG000024)Release
Drawing
Features
11 | s1 | Wall thickness outer pipe (mm) EF024060 - Numeric | |
12 | s2 | Wall thickness inner pipe (mm) EF024059 - Numeric |
Features port 1
01 | Connection EF000443 - Alphanumeric | ||
03 | Dd1 | Diameter inner pipe (mm) EF025217 - Numeric | |
05 | Dd1-2 | Diameter outer pipe (mm) EF016435 - Numeric | |
07 | L1 | Connection length (mm) EF022519 - Numeric | |
10 | Q1 | Slide length (mm) EF023640 - Numeric |
Features port 2
02 | Connection EF000443 - Alphanumeric | ||
04 | Dd2 | Diameter inner pipe (mm) EF025217 - Numeric | |
06 | Dd2-2 | Diameter outer pipe (mm) EF016435 - Numeric | |
08 | L2 | Connection length (mm) EF022519 - Numeric | |
09 | P2 | Sleeve length (mm) EF010520 - Numeric | |
13 | Z2 | Working length (mm) EF006318 - Numeric |
Related productclasses
Synonyms
Concentric extension pipe
Concentric flue air pipe
Concentric flue gas pipe
Concentric flue gas/air pipe
