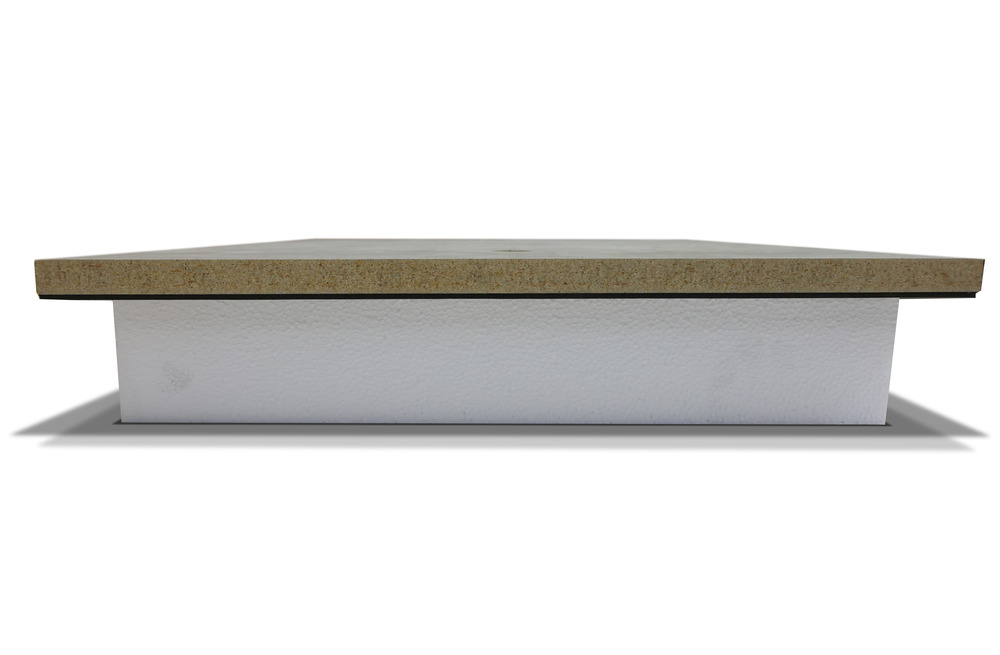

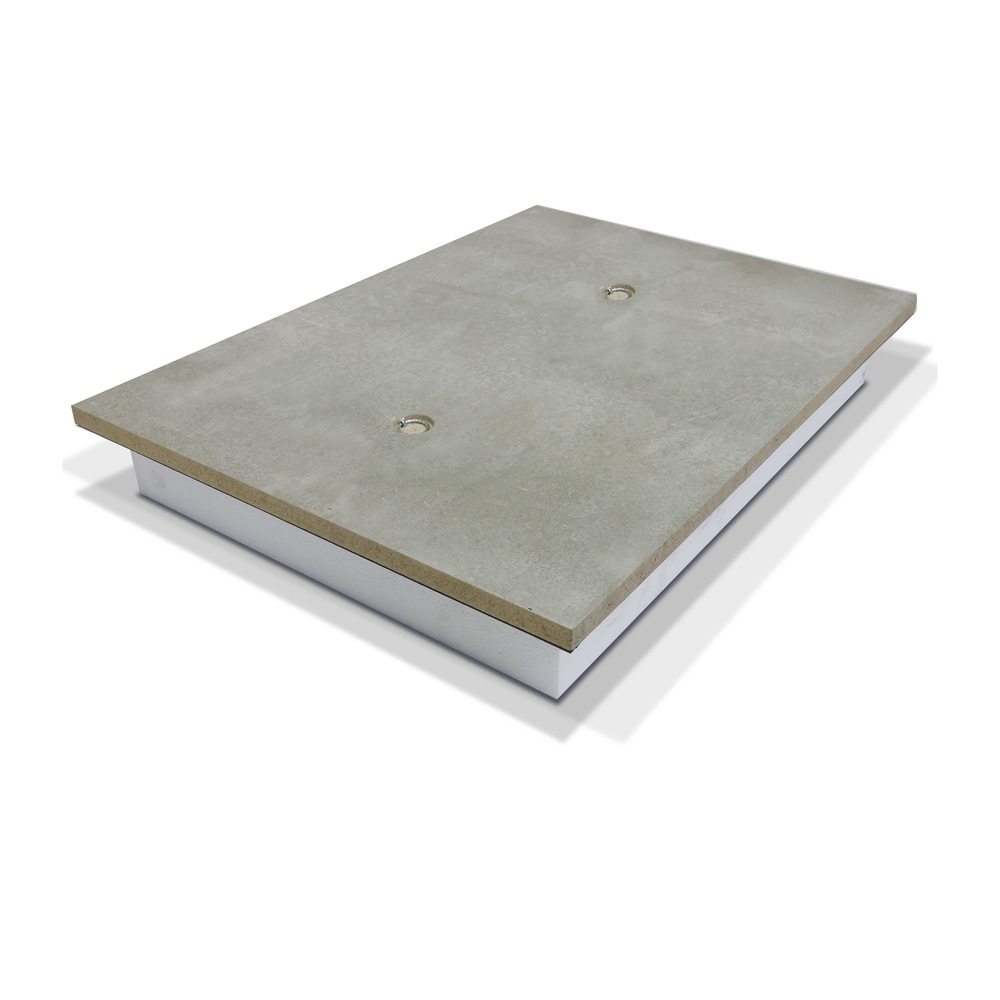

Floor hatch cover

Code

MC000451

Architectural - Doors, windows and hatches (MG000014)

Drawing

Features

01	L	Length (mm) EF001438 - Numeric
02	W	Width (mm) EF000008 - Numeric
03	T	Thickness (mm) EF000125 - Numeric
04	L2	Length 2 (mm) EF021555 - Numeric
05	W2	Width 2 (mm) EF023088 - Numeric
06	T2	Material thickness 2 (mm) EF011444 - Numeric

Related productclasses

Synonyms

Floor hatch cover
