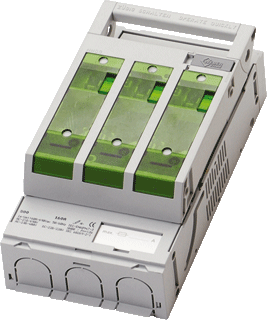

Switch disconnector, fuse, enclosed
MC000486 / v2
Code
MC000486Version
2
Group
Low-voltage industrial components (MG000030)Release
Drawing
Features
01 | H | Height (mm) EF000040 - Numeric | |
02 | H1 | Height 1 (mm) EF010005 - Numeric | |
03 | H2 | Height 2 (mm) EF010006 - Numeric | |
04 | W | Width (mm) EF000008 - Numeric | |
05 | W1 | Width 1 (mm) EF023087 - Numeric | |
06 | D | Depth (mm) EF000049 - Numeric | |
07 | D1 | Depth 1 (mm) EF010952 - Numeric |
Related productclasses
Synonyms
Control switch
Fuse switch disconnector
Fuse switch disconnector with housing
Housing
Main switch
Off switch
Off-load switch
Protection switch disconnector housing
Switch
Switch disconnector
Switch disconnector, fuse, enclosed
