Pot embedding duct with two branches MC000492

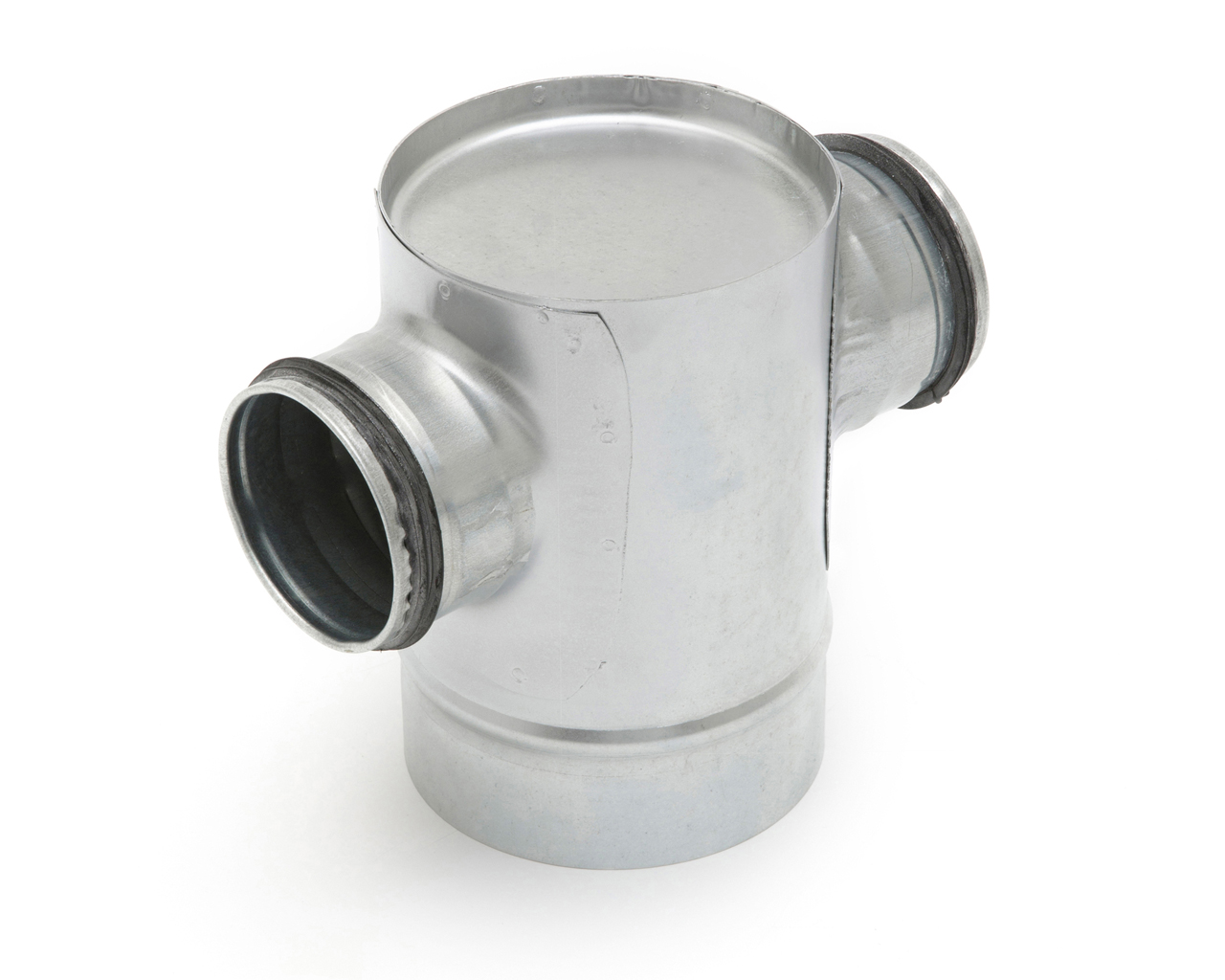

A pot-type embedding duct with two branch outlets.

Published
Ventilation - Ducts and duct fittings MG000003

Features 13

Class features

  1. 1

    LengthEF001438

    A number in mm · L in drawing

  2. 2

    Insulation lengthEF022176

    A number in mm · Li in drawing

  3. 3

    Wall thicknessEF000229

    A number in mm · s in drawing

  4. 4

    Insulation thicknessEF004810

    A number in mm · si in drawing

Port 1

  1. 5

    Duct diameterEF021896

    A number in mm · Dd1 in drawing

  2. 6

    Connection lengthEF022519

    A number in mm · L1 in drawing

  3. 7

    Working length connectionEF016476

    A number in mm · Z1 in drawing

Port 2

  1. 8

    Duct diameterEF021896

    A number in mm · Dd2 in drawing

  2. 9

    Connection lengthEF022519

    A number in mm · L2 in drawing

  3. 10

    Working length connectionEF016476

    A number in mm · Z2 in drawing

Port 3

  1. 11

    Duct diameterEF021896

    A number in mm · Dd3 in drawing

  2. 12

    Connection lengthEF022519

    A number in mm · L3 in drawing

  3. 13

    Working length connectionEF016476

    A number in mm · Z3 in drawing
