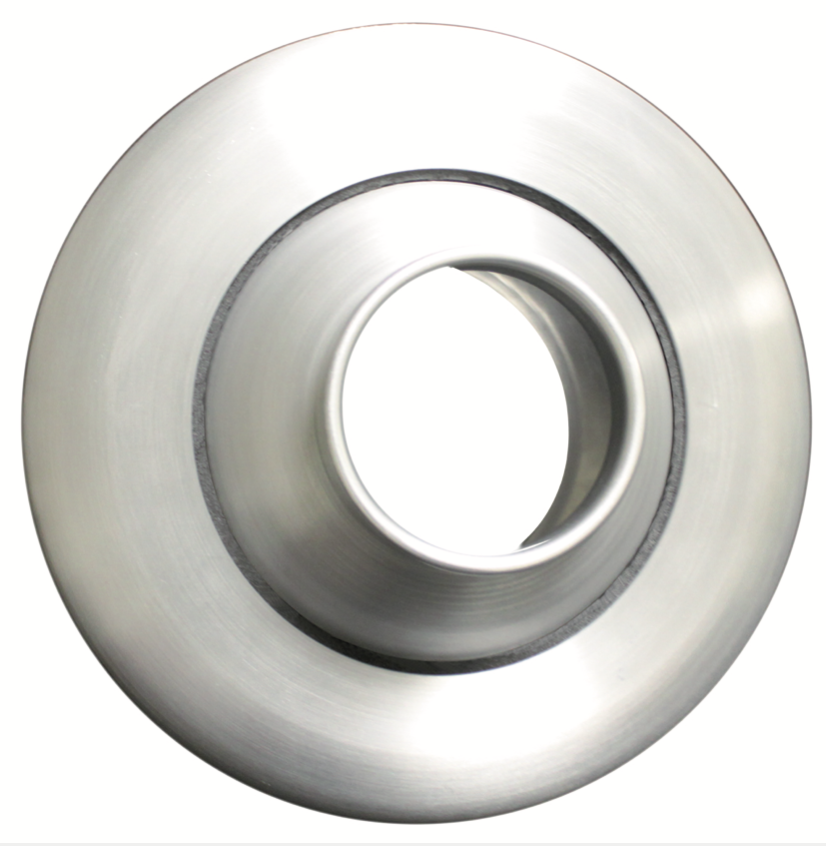

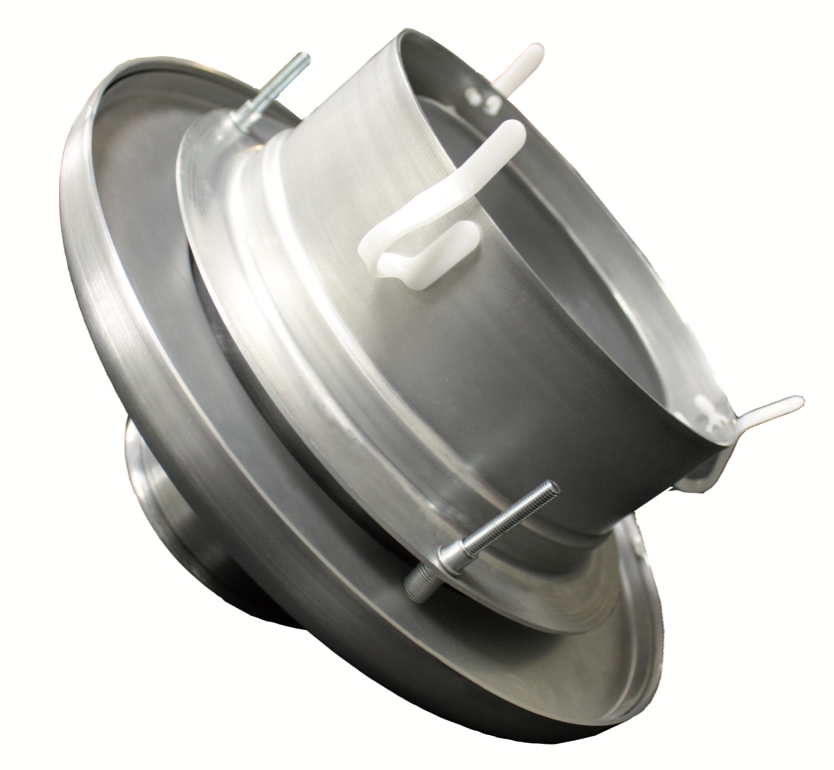

Nozzle grille, round
Code
MC000495Version
1
Group
Ventilation - Air terminals (inlet/extract) (MG000004)Release
Drawing
Features
01 | D1 | Front diameter (mm) EF022765 - Numeric | |
02 | D2 | Diameter (mm) EF000551 - Numeric | |
03 | D3 | Diameter opening (mm) EF004617 - Numeric | |
05 | h1 | Thickness cap (mm) EF010806 - Numeric | |
07 | L2 | Length (mm) EF001438 - Numeric | |
08 | L3 | Length 1 (mm) EF021554 - Numeric |
Features port 1
04 | Dd1 | Duct diameter (mm) EF021896 - Numeric | |
06 | L1 | Connection length (mm) EF022519 - Numeric | |
09 | Z1 | Working length connection (mm) EF016476 - Numeric |
Related productclasses
Synonyms
Nozzle grille, round
