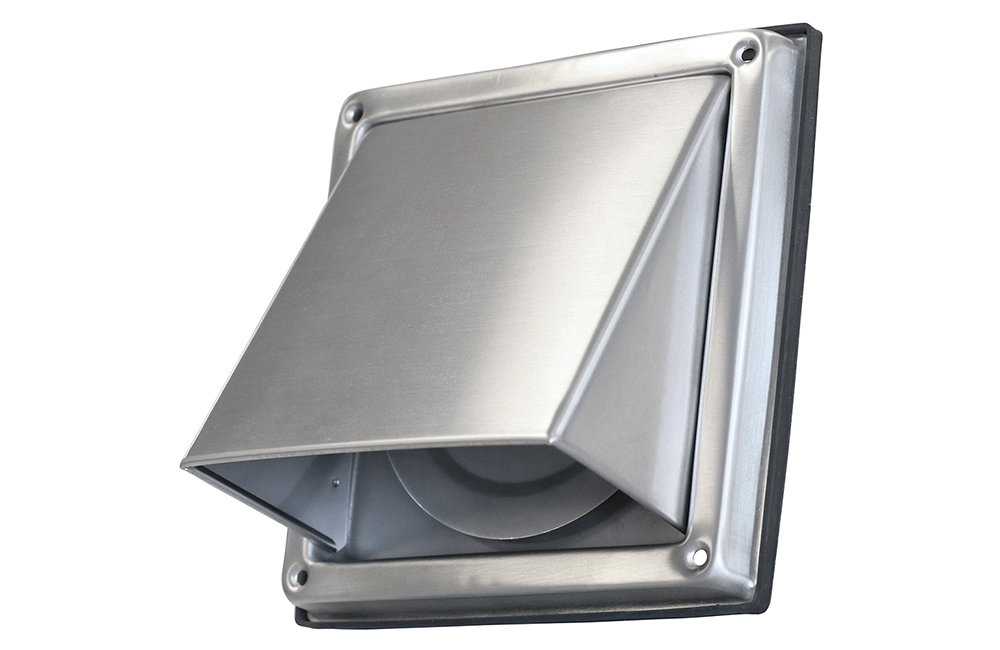

Façade louver, square
Code
MC000497Version
1
Group
Ventilation - Air terminals (inlet/extract) (MG000004)Release
Drawing
Features
01 | H1 | Height grid frame (mm) EF010968 - Numeric | |
02 | H2 | Height grid (mm) EF025263 - Numeric | |
03 | Hf | Front height (mm) EF022768 - Numeric | |
04 | L2 | Length (mm) EF001438 - Numeric | |
05 | T | Rim thickness (mm) EF010038 - Numeric | |
06 | W1 | Width grid (mm) EF022332 - Numeric | |
07 | Wf | Front width (mm) EF022764 - Numeric |
Features port 1
08 | Dd1 | Duct diameter (mm) EF021896 - Numeric | |
09 | L1 | Connection length (mm) EF022519 - Numeric | |
10 | Z1 | Working length connection (mm) EF016476 - Numeric |
Related productclasses
Synonyms
Façade louver, square
Louvre back draft shutter
