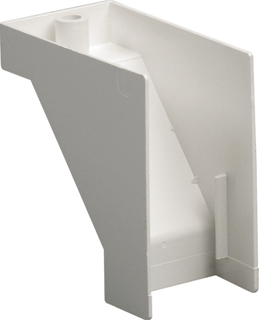

Transition piece wall to ceiling for installation duct
Code
MC000521Version
1
Group
Electrical - Trunking and surface raceways (MG000053)Release
Drawing
Features
01 | W | Width (mm) EF000008 - Numeric | |
02 | Di | Diameter (mm) EF000551 - Numeric | |
03 | s | Material thickness (mm) EF000386 - Numeric | |
04 | D | Depth (mm) EF000049 - Numeric | |
05 | D1 | Depth 1 (mm) EF010952 - Numeric | |
06 | H | Height (mm) EF000040 - Numeric | |
07 | H1 | Height 1 (mm) EF010005 - Numeric |
Related productclasses
Synonyms
Transition piece wall to ceiling for installation duct
