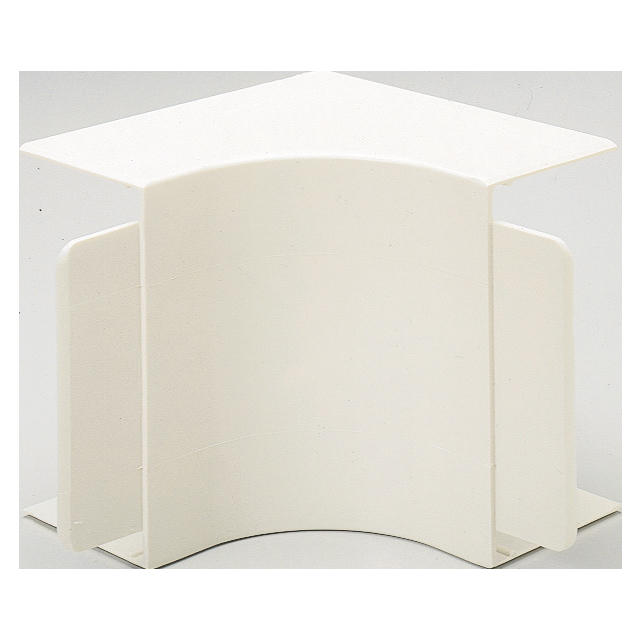

Corner, internal, installation duct
Code
MC000549Version
1
Group
Electrical - Trunking and surface raceways (MG000053)Release
Drawing
Features
01 | a | Angle (degrees) (°) EF022727 - Numeric | |
02 | H | Height (mm) EF000040 - Numeric | |
03 | IL1 | Inner length (mm) EF022970 - Numeric | |
04 | L | Length (mm) EF001438 - Numeric | |
05 | L1 | Length 1 (mm) EF021554 - Numeric | |
06 | r | Radius (mm) EF020621 - Numeric | |
07 | s | Material thickness (mm) EF000386 - Numeric | |
08 | W | Width (mm) EF000008 - Numeric |
Related productclasses
Synonyms
Corner, inner, installation duct
Corner, internal, installation duct
Inner corner for installation duct
