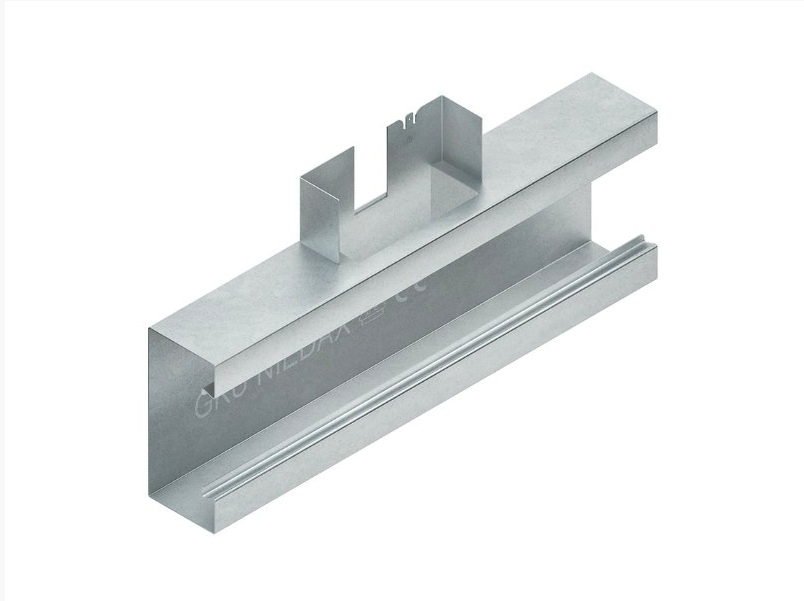

Tee, wall duct
Code
MC000556Version
1
Group
Electrical - Trunking and surface raceways (MG000053)Release
Drawing
Features
01 | D | Depth (mm) EF000049 - Numeric | |
02 | D1 | Depth 1 (mm) EF010952 - Numeric | |
03 | H | Height (mm) EF000040 - Numeric | |
04 | H1 | Height 1 (mm) EF010005 - Numeric | |
05 | L | Length (mm) EF001438 - Numeric | |
06 | L1 | Length 1 (mm) EF021554 - Numeric | |
07 | s | Material thickness (mm) EF000386 - Numeric | |
08 | Wd | Width inside (mm) EF007715 - Numeric |
Related productclasses
Synonyms
Connector for wall duct
Coupling piece
Duct connector
Duct linking element
Tee, wall duct
Trunking joiner
Wall duct coupling piece
Wall trunking joiner
