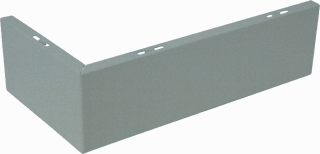

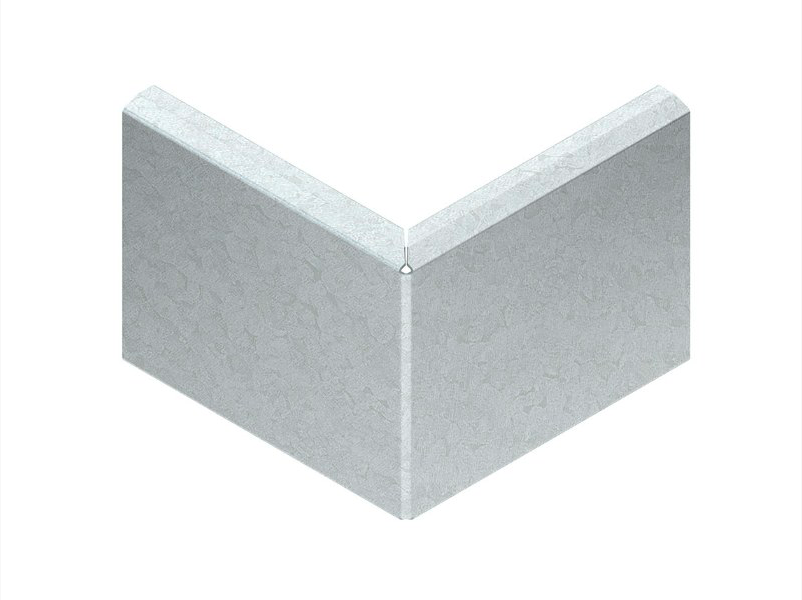

Cover, corner, cable duct, external
MC000578 / v1
Code
MC000578Version
1
Group
Electrical - Trunking and surface raceways (MG000053)Release
1 / 5

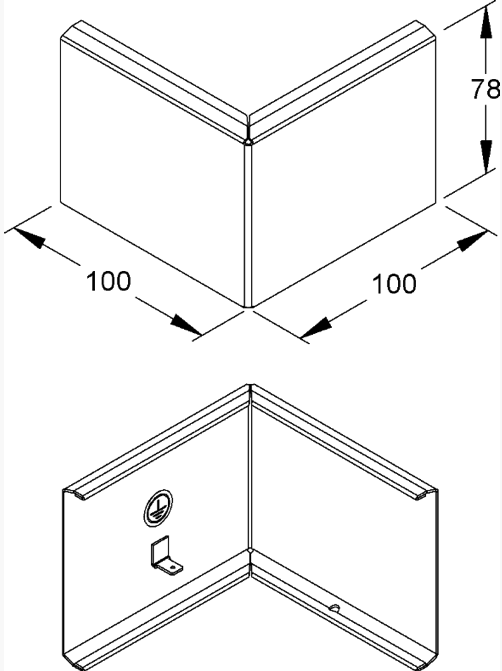

Drawing
Features
01 | H | Height (mm) EF000040 - Numeric | |
02 | IL1 | Inner length (mm) EF022970 - Numeric | |
03 | L | Length (mm) EF001438 - Numeric | |
04 | L1 | Length 1 (mm) EF021554 - Numeric | |
05 | s | Material thickness (mm) EF000386 - Numeric | |
06 | W | Width (mm) EF000008 - Numeric |
Related productclasses
Synonyms
Corner joint cover
Cover for corner for wall duct
Cover, corner, cable duct, external
Duct corner cap
External angle cover
Outer bend cover
Outer corner cover for cable duct
