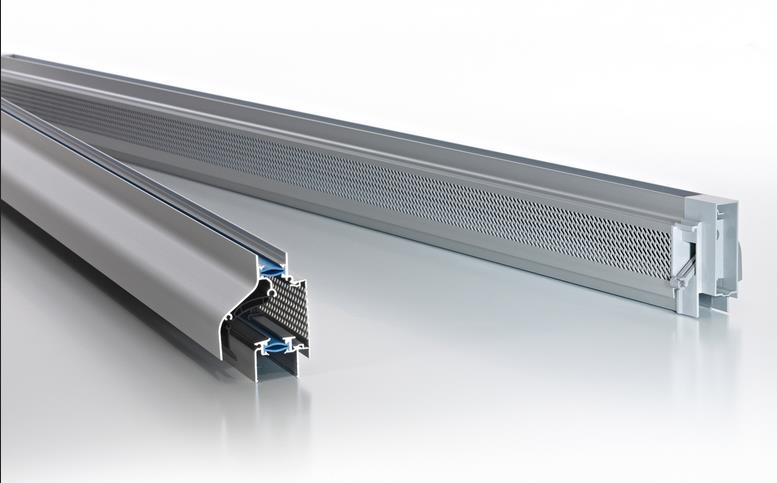

Vent, trickle, frame, window‑door
Code
MC000628Version
1
Group
Architectural - Doors, windows and hatches (MG000014)Release

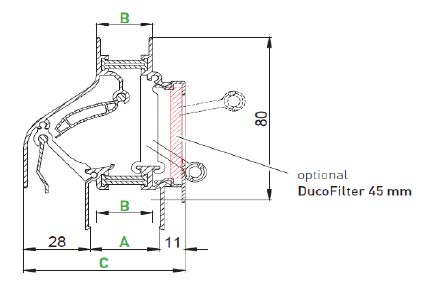

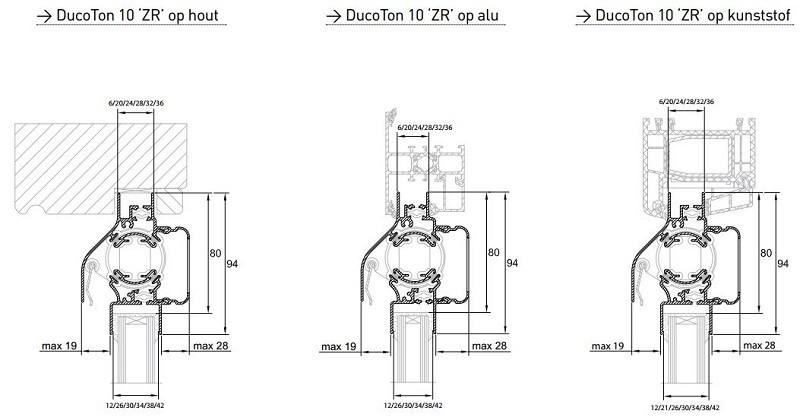

Drawing
Features
01 | H1 | Height 1 (mm) EF010005 - Numeric | |
02 | H2 | Height 2 (mm) EF010006 - Numeric | |
03 | H3 | Height 3 (mm) EF010887 - Numeric | |
04 | H4 | Height 4 (mm) EF010998 - Numeric | |
05 | L | Length (mm) EF001438 - Numeric | |
06 | W1 | Width 1 (mm) EF023087 - Numeric | |
07 | W2 | Width 2 (mm) EF023088 - Numeric | |
08 | W3 | Width 3 (mm) EF010999 - Numeric | |
09 | W4 | Width 4 (mm) EF011000 - Numeric | |
10 | W5 | Width 5 (mm) EF011001 - Numeric |
Related productclasses
Synonyms
Air ventilation grille for window
Trickle vent
Vent, trickle, frame, window-door
Window vent
Window ventilation
Window ventilation grille
Window ventilator
