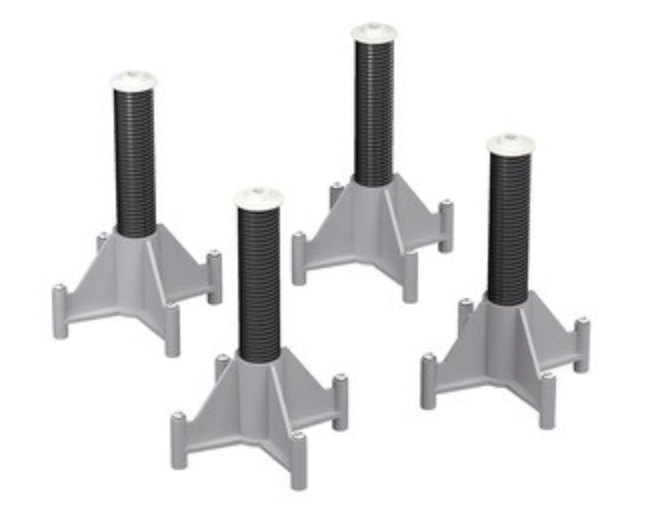

Height adjustment ring/-frame for subfloor installation duct
Code
MC000709Version
1
Group
Electrical - Underfloor cable systems (MG000050)Release
Drawing
Features
01 | Di | Diameter (mm) EF000551 - Numeric | |
02 | H | Height (mm) EF000040 - Numeric | |
03 | H1 | Height 1 (mm) EF010005 - Numeric | |
04 | L | Length (mm) EF001438 - Numeric | |
05 | s | Material thickness (mm) EF000386 - Numeric | |
06 | W | Width (mm) EF000008 - Numeric |
Related productclasses
Synonyms
Height adjustment ring/-frame for subfloor installation duct
