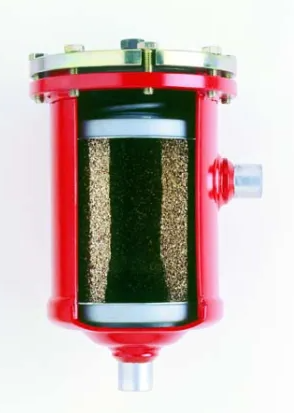

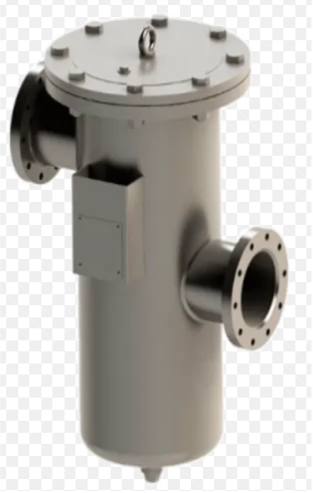

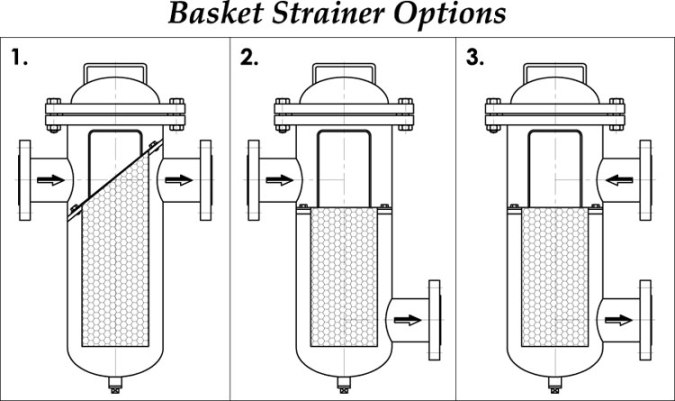

Bucket filter

Code

MC000713

Version

1

Group

Piping - Filtration and separators (MG000022)

Release

nl 2BA se RSK be InstallData fi Sahkonumerot
Drawing
Dimensional drawing
Features

05

H

Height (mm)

EF000040 - Numeric

06

D

Diameter (mm)

EF000551 - Numeric

07

Dc

Cover diameter (mm)

EF016292 - Numeric

08

T

Thickness (mm)

EF000125 - Numeric
Features port 1
CT000001/4
CT000007/2
CT000016/3
CT000017/4

01

CA

Position connection (mm)

EF011006 - Coordinate

03

DV

Directional vector connection (mm)

EF011005 - Coordinate
Features port 2
CT000001/4
CT000007/2
CT000016/3
CT000017/4

02

CA

Position connection (mm)

EF011006 - Coordinate

04

DV

Directional vector connection (mm)

EF011005 - Coordinate
Related productclasses

EC010080/7

EC010151/7

Synonyms

Bucket filter

Inline T-filter
