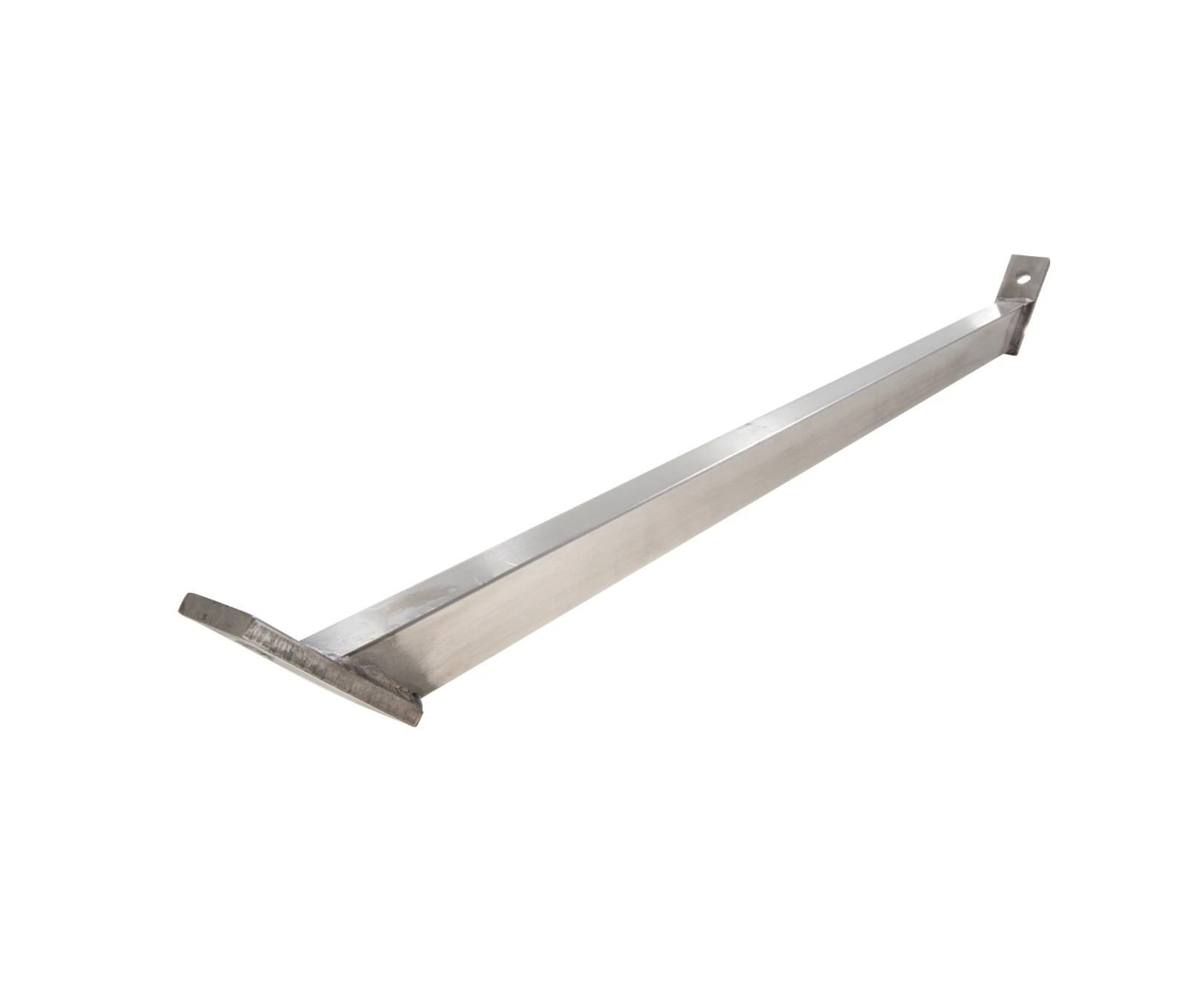

Support bar, angled, pendant
Code
MC000730Version
1
Group
Electrical - Cable trays and ladders (MG000009)Release
Drawing
Features
01 | d | Diameter (mm) EF025539 - Alphanumeric | |
02 | d1 | Diameter 1 (mm) EF010945 - Numeric | |
03 | D | Depth (mm) EF000049 - Numeric | |
04 | D1 | Depth 1 (mm) EF010952 - Numeric | |
05 | H | Height (mm) EF000040 - Numeric | |
06 | H1 | Height 1 (mm) EF010005 - Numeric | |
07 | s | Thickness (mm) EF000125 - Numeric | |
08 | s1 | Material thickness 1 (mm) EF011443 - Numeric | |
09 | W | Width (mm) EF000008 - Numeric | |
10 | W1 | Width 1 (mm) EF023087 - Numeric |
Related productclasses
Synonyms
Angled pendant support bar
Bracket for cable support system
Cantilever arm
Clamping console
Clap console
Console
Console bracket
Double wall bracket
Industry support
Manufacture carrier
Profile console
Rail console
Screw on angle
Support
Support bar, angled, pendant
Support bracket for cable support system
Support for wall rail
Supporting bracket
Threaded sleeve
Wall- and profile console
Wall bracket
Wall console
