Luminaire bollard EC000301

A short, sturdy outdoor light fixture typically used for pathway illumination.

Ready for publication
Luminaires EG000027

Features 68

  1. 1

    Type of luminaireEF004259

    Choose one value

    Bollard luminaireGround stakePedestal luminaireSteleOther
  2. 2

    With base plateEF000093

    Yes or no

    YesNo
  3. 3

    With light sensorEF001203

    Yes or no

    YesNo
  4. 4

    With movement sensorEF000197

    Yes or no

    YesNo
  5. 5

    Movement sensor/presence detector technologyEF018697

    Choose one value

    High frequencyPassive infraredPassive infrared/ultrasonic (dual)UltrasonicOther
  6. 6

    Lamp typeEF002423

    Choose one value

    Compact fluorescent lampFluorescent lamp circular D=16 mmFluorescent lamp circular D=32 mmFluorescent lamp D=7 mmFluorescent lamp D=16 mmFluorescent lamp D=26 mmFluorescent lamp D=38 mmHigh pressure sodium-vapour lampHV halogen lampIncandescent lamp
  7. 7

    With light sourceEF005905

    Yes or no

    YesNo
  8. 8

    Suitable for number of light sourcesEF006436

    A number

  9. 9

    Lamp holderEF000048

    Choose one value

    2G72G102G112G132GX13B15dB22dBA9sE10E14
  10. 10

    Housing materialEF001596

    Choose one value

    AluminiumCast ironCopperPlasticStainless steelSteelStoneWoodOther
  11. 11

    Housing material qualityEF024143

    Choose one value

    Stainless steel 304 (V2A)Stainless steel 304 L (1.4304)Stainless steel 316 (1.4401)Stainless steel 316 L (1.4404)Other
  12. 12

    Surface protectionEF000139

    Choose one value

    UntreatedAnodisedGalvanisedLacqueredPlastic-coatedPowder coatingOther
  13. 13

    Housing colourEF000136

    Choose one value

    AluminiumAnthraciteBeigeBlackBlueBrassBrownBronzeChromeCopper
  14. 14

    Cover materialEF004284

    Choose one value

    Glass, matt/satinizedGlass, opalGlass, structuredGlass, transparentPlastic, matt/satinizedPlastic, opalPlastic, structuredPlastic, transparentOtherWithout cover
  15. 15

    Voltage typeEF000187

    Choose one value

    ACDCAC/DC
  16. 16

    Nominal voltageEF005127

    A range, from and to, in V

  17. 17

    Type of power supplyEF001469

    Choose one value

    Mains power supplySolar operationOther
  18. 18

    Nominal currentEF009345

    A range, from and to, in mA

  19. 19

    Type of control gearEF000381

    Choose one value

    Electronic ballastElectronic transformerLED operating device current-controlledLED operating device voltage-controlledLow-loss ballast compensatedLow-loss ballast inductiveMagnetic transformerNot required
  20. 20

    With control gearEF007556

    Yes or no

    YesNo
  21. 21

    Exchangeable control gearEF016286

    Yes or no

    YesNo
  22. 22

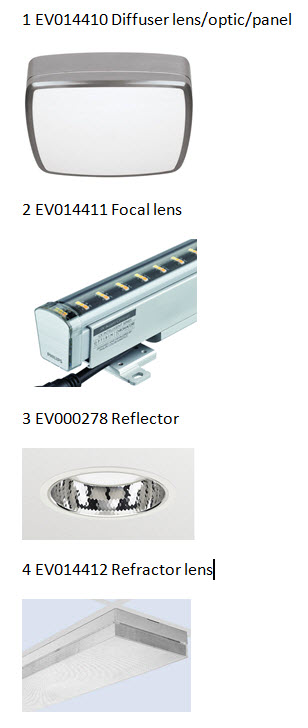

    Light distributorEF012170

    Choose one value

    NoneDiffuser lens/optic/panelFocal lensReflectorRefractor lensOther
  23. 23

    Containing product according to 2019/2020/EUEF019111

    Yes or no

    YesNo
  24. 24

    Energy efficiency class of the light source according to 2019/2015/EUEF016835

    Choose one value

    ABCDEFGNot required
  25. 25

    Rated lifetime L70/B50 at 25 °CEF011870

    A number in h

  26. 26

    Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)EF015687

    A number in %

  27. 27

    Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)EF015689

    A number in %

  28. 28

    Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)EF015691

    A number in %

  29. 29

    Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)EF015693

    A number in %

  30. 30

    Constant light output (CLO)EF009482

    Yes or no

    YesNo
  31. 31

    Degree of protection (IP)EF005474

    Choose one value

    IP00IP10IP12IP20IP21IP22IP23IP24IP2XIP30
  32. 32

    Degree of protection (NEMA)EF011959

    Choose one value

    1233R44X1213Other
  33. 33

    Impact strengthEF004293

    Choose one value

    IK00IK01IK02IK03IK04IK05IK06IK07IK08IK09
  34. 34

    Protection class according to IEC 61140EF000004

    Choose one value

    IIIIIINone
  35. 35

    Suitable for lamp powerEF000280

    A range, from and to, in W

  36. 36

    Max. system powerEF009347

    A number in W

  37. 37

    Light distributionEF004283

    Choose one value

    AsymmetricSymmetricSymmetric/asymmetricDouble asymmetric
  38. 38

    Light outletEF004282

    Choose one value

    DirectIndirectDirect/indirect
  39. 39

    Rated luminous flux according to IEC 62722-2- 1EF018714

    A range, from and to, in lm

  40. 40

    Luminaire efficacyEF012172

    A number in lm/W

  41. 41

    Luminous intensityEF016939

    A range, from and to, in cd

  42. 42

    Beam angleEF008157

    Choose one value

    Open beam/diffuse41-80° - Wide beam> 80° - Extreme wide beamOther
  43. 43

    Colour of lightEF009350

    Choose one value

    AmberBlueGreenMulti-colouredRedRGBRGBWWhiteYellowOther
  44. 44

    Colour temperatureEF009346

    A range, from and to, in K

  45. 45

    Colour rendering index CRIEF000442

    Choose one value

    20-3940-5960-6970-7980-8990-100
  46. 46

    Power factorEF025740

    A number

  47. 47

    Flickering value Pst LMEF015827

    A number

  48. 48

    Stroboscope effect value SVMEF015828

    A number

  49. 49

    Colour of light adjustableEF016261

    Choose one value

    NoContinuously variablePositions
  50. 50

    Luminous flux adjustableEF016262

    Choose one value

    NoContinuously variablePositions
  51. 51

    Beam angle adjustableEF016263

    Choose one value

    NoContinuously variablePositions
  52. 52

    Ambient temperatureEF002386

    A range, from and to, in °C

  53. 53

    WidthEF000008

    A number in mm

  54. 54

    Height/depthEF001456

    A number in mm

  55. 55

    LengthEF001438

    A number in mm

  56. 56

    DiameterEF000551

    A number in mm

  57. 57

    Type of wiringEF011868

    Choose one value

    EndingLoop-through wiring includedSuitable for loop-through wiring
  58. 58

    Number of polesEF001391

    A number

  59. 59

    Conductor cross sectionEF000085

    A number in mm²

  60. 60

    Max. number of luminaires per miniature circuit breaker B16 (MCB)EF015534

    A number

  61. 61

    Max. number of luminaires per miniature circuit breaker C16 (MCB)EF015533

    A number

  62. 62

    Connection typeEF000124

    Choose one value

    BusBusbar adaptorCableConnection cable with plugInsulation displacement connectorPlugPush-in clampScrewed terminalOther
  63. 63

    Connectable conductor cross sectionEF008200

    A range, from and to, in mm²

  64. 64

    Compatible with Apple HomeKitEF014925

    Yes or no

    YesNo
  65. 65

    Compatible with Google AssistantEF014926

    Yes or no

    YesNo
  66. 66

    Compatible with Amazon AlexaEF014927

    Yes or no

    YesNo
  67. 67

    IFTTT support availableEF011072

    Yes or no

    YesNo
  68. 68

    Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)EFNL0014

    Yes or no

    YesNo

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
