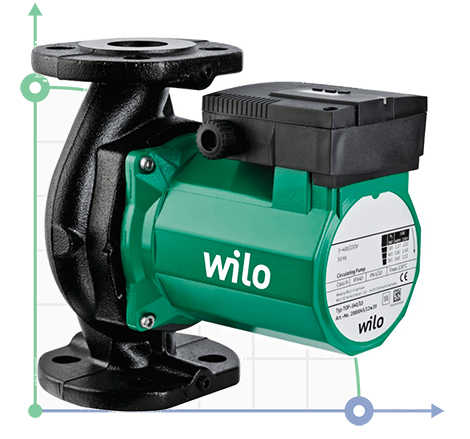

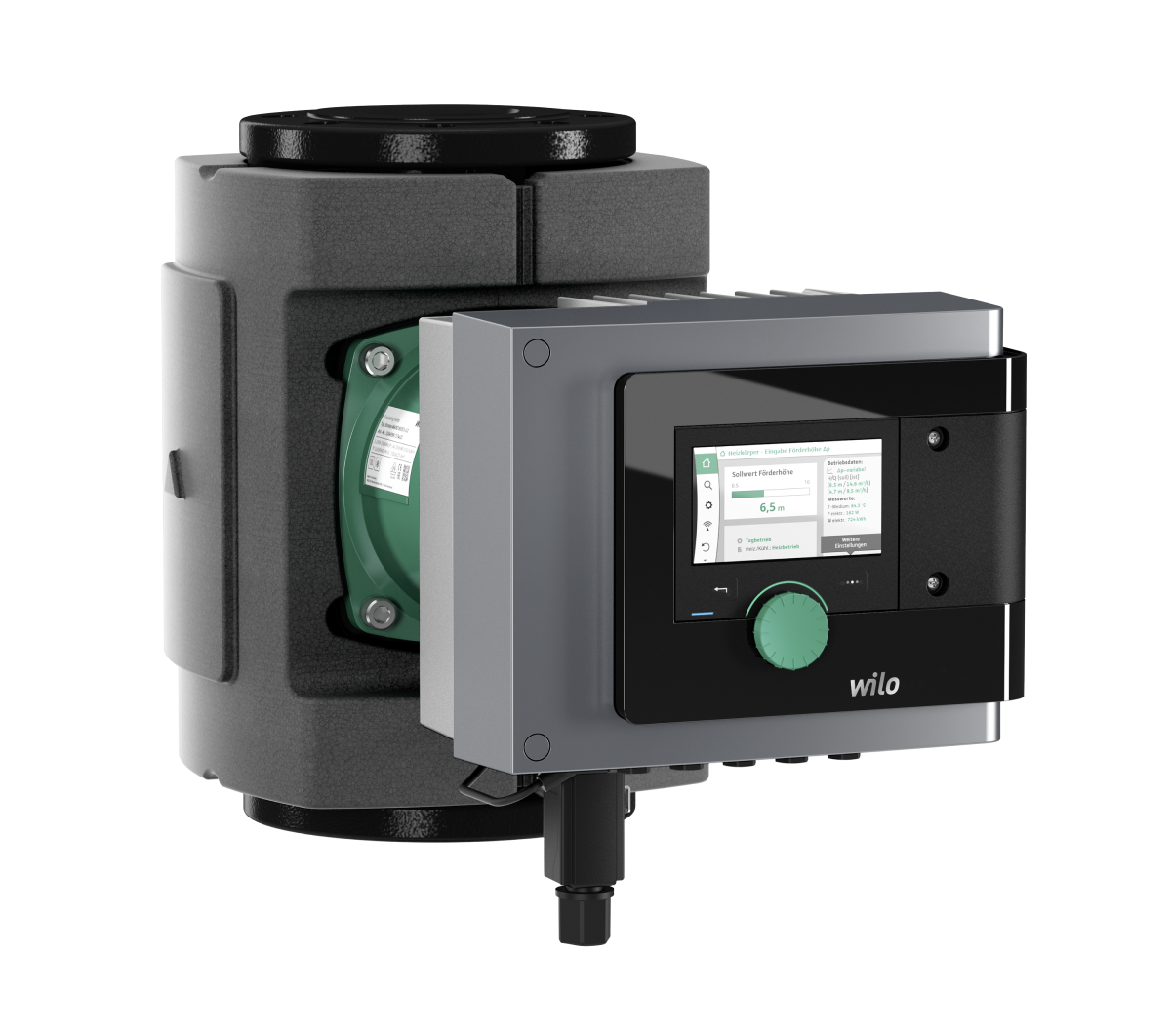

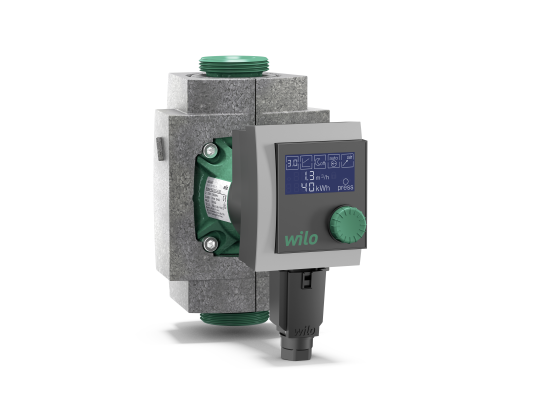

Built-in circulation pump EC010980

Published Pressure increase/decrease EG015260

/

Changes since v4

Features 36

1
Housing material (no longer used)EF022461

Choose one value

AluminiumBronzeCopperBrassCast ironSteelStainless steelPlasticOther
2
Material qualityEF001257

Choose one value

Stainless steel 304 (1.4301)Stainless steel 304 L (1.4306)Stainless steel 316 (1.4401)Stainless steel 316 L (1.4404)Stainless steel 316 Ti (1.4571)Stainless steel 321 (1.4541)St 33 (1.0035)St 34.2 (1.0034)St 35 (1.0308)St 35.8 (1.0305)St 37 (1.0254)St 37.2 (1.0037)St 44.0 (1.0256)St 50.2 (1.0050)St 52.0 (1.0421)St 60.2 (1.0060)St 70.2 (1.0070)Cast steelForged steelAlloyed steelCast iron EN-GJL-200 (GG 20)Cast iron EN-GJL-250 (GG 25)Cast iron EN-GJS-400-18 (GGG 40.3)Cast iron EN-GJS-400-15 (GGG 40)PE-40PE-50PE-80PE-100PVC-CPVC-CPEPVC recycledBronze (Rg 5)Zinc-poor bronze (Rg 10)Zinc-free bronze (90/10)Aluminium bronzeDezincification resistant brass (DZR)PP-HPP-RPP-CPP-GFPP-SOther
3
Material impeller/pump wheelEF011652

Choose one value

PlasticStainless steelOther
4
Nominal volume flow rateEF007389

A number in m³/h
5
Discharge head at nominal flow rateEF022473

A number in kPa
6
Nominal diameterEF023191

Choose one value

1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 10DN 121/2 inch (15)DN 15DN 183/4 inch (20)DN 201 inch (25)DN 251 1/4 inch (32)DN 321 1/2 inch (40)DN 402 inch (50)DN 50DN 652 1/2 inch (65)DN 703 inch (80)DN 803 1/2 inch4 inch (100)DN 1005 inch (125)DN 1256 inch (150)DN 150DN 1758 inch (200)DN 20010 inch (250)DN 25012 inch (300)DN 300DN 350DN 400DN 450DN 500DN 600DN 700DN 800DN 900DN 1000DN 1200DN 1400DN 1600DN 1800DN 2000Other
7
ConnectionEF000443

Choose one value

Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)FlangeSoldered endSoldered sleeveCompression ringClampWelded endWelded sleevePlastic welded endPlastic welded sleeveElectric welded sleeveLaminateGlued sleeveGlued endGrooveStorzHose pillarPress sleeveOther
8
Article pressure ratingEF020007

Choose one value

PressurelessPN 2.5PN 3.2PN 4PN 6PN 8PN 10PN 12.5PN 16PN 20PN 25PN 32PN 40PN 63PN 100PN 160PN 250PN 320150 mbarOther
9
Flange pressure ratingEF020149

Choose one value

PN 2.5PN 6PN 6/10PN 10PN 10/16PN 16PN 25PN 40PN 63PN 100PN 160PN 250PN 320Other
10
Flange shape ovalEF023859

Yes or no

YesNo
11
Connection voltageEF020233

Choose one value

1x 230 V3x 230 V3x 400 V3x 440 VOther
12
FrequencyEF005455

Choose one value

50 Hz60 Hz50/60 HzOther
13
Motor power input (P1) per motorEF012424

A number in W
14
Nominal currentEF000001

A number in A
15
Electrical connectionEF003701

Choose one value

TerminalsConnection cable with plugOther
16
Degree of protection (IP)EF005474

Choose one value

IP00IP05IP10IP12IP20IP21IP22IP23IP24IP25IP2XIP2XCIP30IP31IP32IP33IP34IP3XIP40IP41IP42IP43IP44IP45IP50IP51IP52IP53IP54IP55IP56IP57IP58IP59KIP60IP64IP65IP66IP67IP67KIP68IP69KIPX0IPX1IPX2IPX3IPX4DIPX4IPX5IPX6IPX7Other
17
Insulation class according to IECEF023092

Choose one value

BFH
18
Rotational speedEF001642

A number in Rpm
19
Motor speed controlEF020121

Choose one value

NoneBuilt-in (integrated)External
20
Type of speed controlEF020120

Choose one value

SteppedContinuously variable
21
Communication busEF005668

Choose one value

NoneRS-485RS-232LON-WorksKNXPROFIBUSBACnetModbusModbus/BACnetOtherPossible with accessories
22
Pump circuitEF023089

Choose one value

TemperatureDaily programWeekly programTemperature/daily programTemperature/weekly programOther
23
Double pumpEF023090

Yes or no

YesNo
24
Max. medium temperature (continuous)EF020023

A number in °C
25
Min. medium temperature (continuous)EF020077

A number in °C
26
Built-in lengthEF004265

A number in mm
27
Length of connection 1EF020151

A number in mm
28
Length of connection 2EF020152

A number in mm
29
Pump heightEF023086

A number in mm
30
Width 1EF023087

A number in mm
31
Width 2EF023088

A number in mm
32
Connection size pump housingEF025225

Choose one value

1/2 inch3/4 inch1 inch1 1/4 inch1 1/2 inch2 inchDN 32DN 32, squareDN 40DN 50DN 65DN 80DN 100DN 125Other
33
Energy Efficiency Index (EEI)EF026118

A number
34
Energy efficiency classEF000758

Choose one value

A+++A++A+ABCDEFG
35
Pump power consumption (solpump)EF010779

A number in W
36
Pump power consumption standby (solstandbypump)EF010780

A number in W

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
