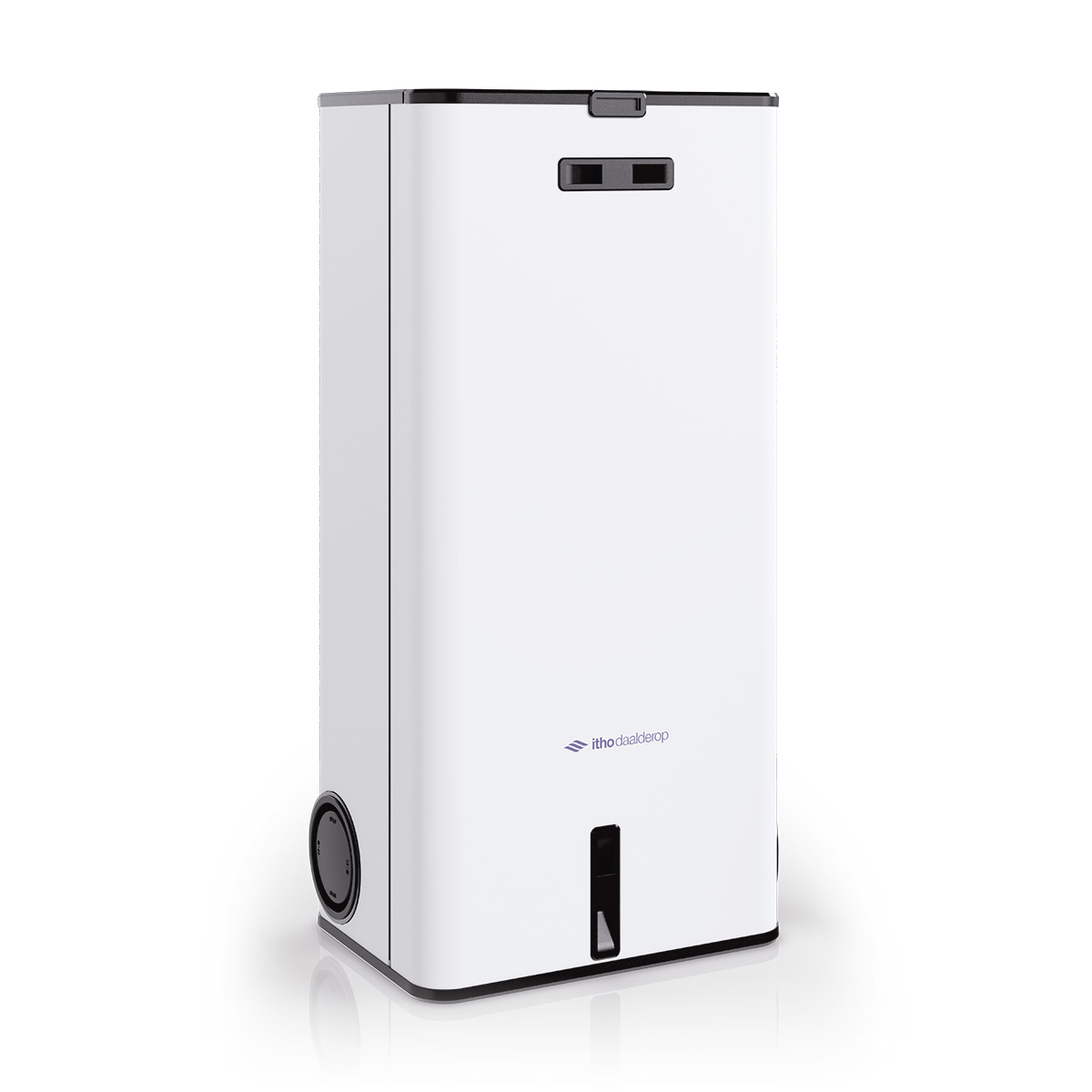

Heat recovery unit (residential) EC011285

A system that recovers and reuses heat from exhaust air in homes.

Ready for publication
Air treatment EG015170

Features 80

  1. 1

    Heat recovery byEF002205

    Choose one value

    Cross-counter-flow unitThermal wheelOther
  2. 2

    Housing materialEF001596

    Choose one value

    The outer case of the product

    Composite materialPlasticSteelOther
  3. 3

    Housing material qualityEF024143

    Choose one value

    The outer case of the product

    Expanded polypropylene (EPP)Expanded polystyrene (EPS)Polyethylene (PE)Polypropylene (PP)Other
  4. 4

    Material heat exchangerEF020003

    Choose one value

    AluminiumPlasticOther
  5. 5

    Suitable for wall mountingEF000664

    Yes or no

    YesNo
  6. 6

    Suitable for ceiling mountingEF021180

    Yes or no

    YesNo
  7. 7

    Suitable for floor mountingEF025108

    Yes or no

    YesNo
  8. 8

    Suitable for mounting in suspended ceilingEF019477

    Yes or no

    YesNo
  9. 9

    Suitable for mounting in an atticEF019478

    Yes or no

    YesNo
  10. 10

    OrientationEF012492

    Choose one value

    LeftRightLeft/right (reversible)
  11. 11

    Max. air volume at 50 PaEF014851

    A number in m³/h

  12. 12

    Max. air volume at 100 PaEF014959

    A number in m³/h

  13. 13

    Max. air volume at 150 PaEF014960

    A number in m³/h

  14. 14

    Max. air volume at 200 PaEF014961

    A number in m³/h

  15. 15

    Max. air volume at 250 PaEF014962

    A number in m³/h

  16. 16

    Max. air volume at 300 PaEF014963

    A number in m³/h

  17. 17

    Max. volume flow according to 1254/2014/EUEF018769

    A number in m³/h

  18. 18

    Sound power level according to 1254/2014/EUEF018770

    A number in dB(A)

  19. 19

    Sound pressure levelEF017718

    A number in dB(A)

  20. 20

    Power consumption at max. air volume at 100 PaEF017599

    A number in W

  21. 21

    Thermal efficiency at 70% air volume at 50 PaEF017601

    A number in %

  22. 22

    Type of motorEF002735

    Choose one value

    ACDCElectronically commutated (EC)Other
  23. 23

    VoltageEF000213

    A number in V

  24. 24

    FrequencyEF000034

    A number in Hz

  25. 25

    Number of phasesEF000351

    A number

  26. 26

    Fuse size of the deviceEF004149

    A number in A

  27. 27

    Power electric heating elementEF025850

    A range, from and to, in W

  28. 28

    With thermal overload protectionEF006233

    Yes or no

    YesNo
  29. 29

    Electrical connectionEF003701

    Choose one value

    CableConnection cable with contour plug (CEE 7/17)Connection cable with EuroplugConnecting cable with plug with protective contactPerilex connecting cableTerminalsOther
  30. 30

    Energy efficiency class according to 1253/2014/EUEF017471

    Choose one value

    A+ABC
  31. 31

    Type of switchEF003496

    Choose one value

    Push buttonTwo-way switchOther
  32. 32

    With digital displayEF024362

    Yes or no

    YesNo
  33. 33

    With wired control unitEF014706

    Yes or no

    YesNo
  34. 34

    Suitable for wired control unitEF014707

    Yes or no

    YesNo
  35. 35

    With wireless remote controlEF021154

    Yes or no

    YesNo
  36. 36

    Suitable for wireless remote controlEF024361

    Yes or no

    YesNo
  37. 37

    Supporting protocol for ModbusEF003057

    Yes or no

    YesNo
  38. 38

    Operation by appEF012384

    Yes or no

    YesNo
  39. 39

    With zone controllerEF014708

    Yes or no

    YesNo
  40. 40

    Suitable for zone controllerEF014709

    Yes or no

    YesNo
  41. 41

    With heating elementEF021913

    Yes or no

    YesNo
  42. 42

    With volatile organic compound (VOC) sensorEF017468

    Yes or no

    YesNo
  43. 43

    Suitable for extra VOC sensorEF017469

    Yes or no

    YesNo
  44. 44

    With external humidity (RH) sensorEF014701

    Yes or no

    YesNo
  45. 45

    With internal humidity (RH) sensorEF014700

    Yes or no

    YesNo
  46. 46

    Suitable for (extra) humidity (RH) sensorEF014702

    Yes or no

    YesNo
  47. 47

    With internal carbon dioxide (CO2) sensorEF013630

    Yes or no

    YesNo
  48. 48

    Suitable for (extra) carbon dioxide (CO2) sensorEF014699

    Yes or no

    YesNo
  49. 49

    Suitable for central heating boiler connectionEF024407

    Yes or no

    YesNo
  50. 50

    With bypassEF022201

    Yes or no

    YesNo
  51. 51

    With constant pressure controlEF014958

    Yes or no

    YesNo
  52. 52

    With constant volume flow controlEF014957

    Yes or no

    YesNo
  53. 53

    Type of frost protectionEF014956

    Choose one value

    Heating elementFrost protection valveOther
  54. 54

    Nominal duct diameterEF023195

    A range, from and to, in mm

  55. 55

    Number of outdoor air connections (ODA) according to EN 13141-7EF026808

    A number

  56. 56

    Number of supply air connections (SUP) according to EN 13141-7EF026805

    A number

  57. 57

    Number of extract air connections (ETA) according to EN 13141-7EF026806

    A number

  58. 58

    Number of exhaust air connections (EHA) according to EN 13141-7EF026807

    A number

  59. 59

    Connections outdoor air (ODA)EF026809

    Choose one value

    Duct endInsert-/duct endInsert endOther
  60. 60

    Connections supply air (SUP)EF026810

    Choose one value

    Duct endInsert-/duct endInsert endOther
  61. 61

    Connections extract air (ETA)EF026811

    Choose one value

    Duct endInsert-/duct endInsert endOther
  62. 62

    Connections exhaust air (EHA)EF026812

    Choose one value

    Duct endInsert-/duct endInsert endOther
  63. 63

    Supply filter according to ISO 16890-1:2016EF013391

    Choose one value

    ISO CoarseISO ePM10ISO ePM2.5ISO ePM1
  64. 64

    Efficiency supply filter according to ISO 16890-1:2016EF014694

    A number in %

  65. 65

    Exhaust filter according to ISO 16890-1:2016EF013390

    Choose one value

    ISO CoarseISO ePM10ISO ePM2.5ISO ePM1
  66. 66

    Efficiency exhaust filter according to ISO 16890-1:2016EF013389

    A number in %

  67. 67

    HeightEF000040

    A number in mm

  68. 68

    WidthEF000008

    A number in mm

  69. 69

    DepthEF000049

    A number in mm

  70. 70

    Degree of protection (IP)EF005474

    Choose one value

    IP00IP05IP10IP12IP20IP21IP22IP23IP24IP25
  71. 71

    WeightEF000167

    A number in kg

  72. 72

    Suitable for a one-room dwelling acc. to decree nr. 87-149 and law 96-1107EFFR0017

    Yes or no

    YesNo
  73. 73

    Suitable for a two-room dwelling acc. to decree nr. 87-149 and law 96-1107EFFR0018

    Yes or no

    YesNo
  74. 74

    Suitable for a three-room dwelling acc. to decree nr. 87-149 and law 96-1107EFFR0019

    Yes or no

    YesNo
  75. 75

    Suitable for a four-room dwelling acc. to decree nr. 87-149 and law 96-1107EFFR0020

    Yes or no

    YesNo
  76. 76

    Suitable for a five-room dwelling acc. to decree nr. 87-149 and law 96-1107EFFR0021

    Yes or no

    YesNo
  77. 77

    Suitable for a six-room dwelling acc. to decree nr. 87-149 and law 96-1107EFFR0022

    Yes or no

    YesNo
  78. 78

    Suitable for a seven-room dwelling acc. to decree nr. 87-149 and law 96-1107EFFR0023

    Yes or no

    YesNo
  79. 79

    Weighted average power according to RT 2005EFFR0027

    A number in W-Th-C

  80. 80

    Certified according to NF mechanical controlled ventilationEFFR0034

    Yes or no

    YesNo

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
