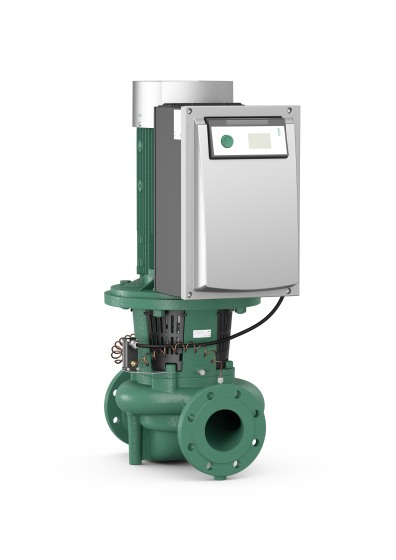

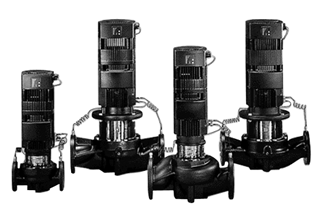

Inline circulation pump with standard motor EC011333

Published Pressure increase/decrease EG015260

/

Changes since v4

Features 34

1
Housing material (no longer used)EF022461

Choose one value

AluminiumBronzeCopperBrassCast ironSteelStainless steelPlasticOther
2
Material qualityEF001257

Choose one value

Stainless steel 304 (1.4301)Stainless steel 304 L (1.4306)Stainless steel 316 (1.4401)Stainless steel 316 L (1.4404)Stainless steel 316 Ti (1.4571)Stainless steel 321 (1.4541)St 33 (1.0035)St 34.2 (1.0034)St 35 (1.0308)St 35.8 (1.0305)St 37 (1.0254)St 37.2 (1.0037)St 44.0 (1.0256)St 50.2 (1.0050)St 52.0 (1.0421)St 60.2 (1.0060)St 70.2 (1.0070)Cast steelForged steelAlloyed steelCast iron EN-GJL-200 (GG 20)Cast iron EN-GJL-250 (GG 25)Cast iron EN-GJS-400-18 (GGG 40.3)Cast iron EN-GJS-400-15 (GGG 40)PE-40PE-50PE-80PE-100PVC-CPVC-CPEPVC recycledBronze (Rg 5)Zinc-poor bronze (Rg 10)Zinc-free bronze (90/10)Aluminium bronzeDezincification resistant brass (DZR)PP-HPP-RPP-CPP-GFPP-SOther
3
Nominal volume flow rateEF007389

A number in m³/h
4
Discharge head at nominal flow rateEF022473

A number in kPa
5
Nominal diameterEF023191

Choose one value

1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 10DN 121/2 inch (15)DN 15DN 183/4 inch (20)DN 201 inch (25)DN 251 1/4 inch (32)DN 321 1/2 inch (40)DN 402 inch (50)DN 50DN 652 1/2 inch (65)DN 703 inch (80)DN 803 1/2 inch4 inch (100)DN 1005 inch (125)DN 1256 inch (150)DN 150DN 1758 inch (200)DN 20010 inch (250)DN 25012 inch (300)DN 300DN 350DN 400DN 450DN 500
6
ConnectionEF000443

Choose one value

Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)FlangeSoldered endSoldered sleeveCompression ringClampWelded endWelded sleevePlastic welded endPlastic welded sleeveElectric welded sleeveLaminateGlued sleeveGlued endGrooveStorzHose pillarPress sleeveOther
7
With oval counterflangesEF023103

Yes or no

YesNo
8
Article pressure ratingEF020007

Choose one value

PressurelessPN 2.5PN 3.2PN 4PN 6PN 8PN 10PN 12.5PN 16PN 20PN 25PN 32PN 40PN 63PN 100PN 160PN 250PN 320150 mbarOther
9
Flange pressure ratingEF020149

Choose one value

PN 2.5PN 6PN 10PN 16PN 25PN 40PN 63PN 100PN 160PN 250PN 320Other
10
Self-primingEF020038

Yes or no

YesNo
11
Connection voltageEF020233

Choose one value

1x 230 V3x 230 V3x 400 V3x 440 VOther
12
FrequencyEF005455

Choose one value

50 Hz60 Hz50/60 HzOther
13
Motor power output (P2) per motorEF012425

A number in kW
14
Nominal currentEF000001

A number in A
15
Degree of protection (IP)EF005474

Choose one value

IP00IP05IP10IP12IP20IP21IP22IP23IP24IP25IP2XIP2XCIP30IP31IP32IP33IP34IP3XIP40IP41IP42IP43IP44IP45IP50IP51IP52IP53IP54IP55IP56IP57IP58IP59KIP60IP64IP65IP66IP67IP67KIP68IP69KIPX0IPX1IPX2IPX3IPX4IPX5IPX6IPX7Other
16
Insulation class according to IECEF023092

Choose one value

BFH
17
Rotational speedEF001642

A number in Rpm
18
Motor speed controlEF020121

Choose one value

NoneBuilt-in (integrated)External
19
Type of speed controlEF020120

Choose one value

NoneContinuously variablePole-reversible
20
Communication busEF005668

Choose one value

RS-485RS-232LON-WorksKNXPROFIBUSOther
21
Motor with extended shaftEF023093

Yes or no

YesNo
22
Double pumpEF023090

Yes or no

YesNo
23
Max. medium temperature (continuous)EF020023

A number in °C
24
Min. medium temperature (continuous)EF020077

A number in °C
25
Built-in lengthEF004265

A number in mm
26
Length of connection 1EF020151

A number in mm
27
Length of connection 2EF020152

A number in mm
28
Width 1EF023087

A number in mm
29
Width 2EF023088

A number in mm
30
Pump heightEF023086

A number in mm
31
Connection size pump housingEF025225

Choose one value

1/2 inch1 inch1 1/4 inch1 1/2 inch2 inchDN 32DN 40DN 50DN 65DN 80DN 100DN 125DN 150DN 200DN 250Other
32
Pump power consumption (solpump)EF010779

A number in W
33
Pump power consumption standby (solstandbypump)EF010780

A number in W
34
Energy efficiency classEF000758

Choose one value

A+++A++A+ABCDEFG

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
