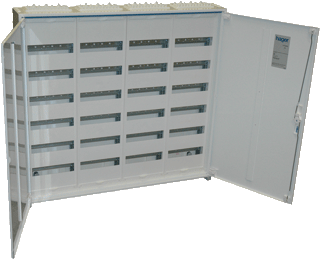

Enclosure/switchgear cabinet surface mounted wall type with door/cover

Electrical distribution systems. Empty cabinet; Enclosure/switchgear cabinet (empty); Enclosure/switchgear cabinet surface mounted wall type with door/cover; Fuse enclosure; Small distribution board; Small distribution board equipped; Terminal box; Unequipped meter cabinet

Code:

MC000187

Version:

Group:

Electrical distribution systems

MG000017
Drawing
Dimensional drawing url
Features

01

Mounting method
EF000003 - Alphanumeric

02

Type of covering
EF000339 - Alphanumeric

03

Type of door
EF004464 - Alphanumeric

04

D
Depth (mm)
EF000049 - Numeric

05

D1
Depth 1 (mm)
EF010952 - Numeric

06

D2
Depth 2 (mm)
EF010953 - Numeric

07

Dc1
Depth cable entry 1 (mm)
EF010982 - Numeric

08

Dc2
Depth cable entry 2 (mm)
EF010983 - Numeric

09

H
Height (mm)
EF000040 - Numeric

10

W
Width (mm)
EF000008 - Numeric

11

Wc1
Width cable entry 1 (mm)
EF010984 - Numeric

12

Wc2
Width cable entry 2 (mm)
EF010985 - Numeric

13

Wd1
Width door 1 (mm)
EF011057 - Numeric

14

Wd2
Width door 2 (mm)
EF011058 - Numeric
Related productclasses

EC000058/5

EC000058/6

EC000058/7

EC000100/5

EC000100/6

EC000100/7

EC000214/6

EC000214/7

EC000214/8

EC000248/5

EC000248/6

EC000248/7

EC000261/6

EC000261/7

EC000261/8

EC002288/4

EC002288/5

EC002288/6

EC002713/6

EC002713/7

Synonyms

Empty cabinet

Enclosure/switchgear cabinet (empty)

Enclosure/switchgear cabinet surface mounted wall type with door/cover

Fuse enclosure

Small distribution board

Small distribution board equipped

Terminal box

Unequipped meter cabinet
