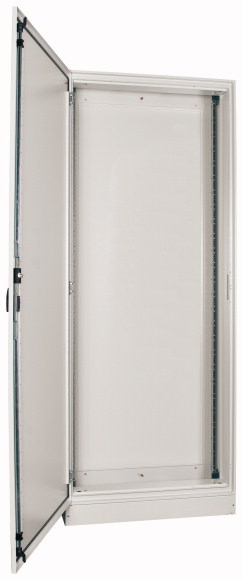

Installation cabinet floor standing with door/cover MC000255

Published
Electrical - Power distribution and protection MG000017

Features 15

  1. 1

    Mounting methodEF000003

    Choose one value

    Floor installation
  2. 2

    Type of coveringEF000339

    Choose one value

    LidDoor
  3. 3

    Type of doorEF004464

    Choose one value

    SingleDoubleCompartment doorNone
  4. 4

    DepthEF000049

    A number in mm · D in drawing

  5. 5

    Depth 1EF010952

    A number in mm · D1 in drawing

  6. 6

    Depth 2EF010953

    A number in mm · D2 in drawing

  7. 7

    Depth cable entry 1EF010982

    A number in mm · Dc1 in drawing

  8. 8

    Depth cable entry 2EF010983

    A number in mm · Dc2 in drawing

  9. 9

    HeightEF000040

    A number in mm · H in drawing

  10. 10

    Height 1EF010005

    A number in mm · H1 in drawing

  11. 11

    WidthEF000008

    A number in mm · W in drawing

  12. 12

    Width cable entry 1EF010984

    A number in mm · Wc1 in drawing

  13. 13

    Width cable entry 2EF010985

    A number in mm · Wc2 in drawing

  14. 14

    Width door 1EF011057

    A number in mm · Wd1 in drawing

  15. 15

    Width door 2EF011058

    A number in mm · Wd2 in drawing

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
