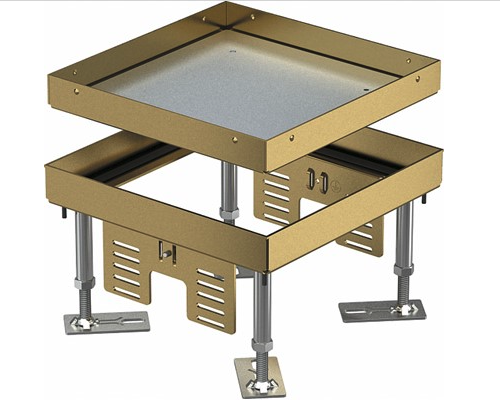

Levelling cassette for duct mounting, raised and subfloor installation square
MC000695 / v1
Code
MC000695Version
1
Group
Electrical - Underfloor cable systems (MG000050)Release
Drawing
Features
01 | H | Height (mm) EF000040 - Numeric | |
02 | H1 | Height 1 (mm) EF010005 - Numeric | |
03 | H2 | Height 2 (mm) EF010006 - Numeric | |
04 | W | Width (mm) EF000008 - Numeric | |
05 | W1 | Width 1 (mm) EF023087 - Numeric | |
06 | L | Length (mm) EF001438 - Numeric | |
07 | L1 | Length 1 (mm) EF021554 - Numeric | |
08 | Di | Diameter (mm) EF000551 - Numeric | |
09 | s | Material thickness (mm) EF000386 - Numeric |
Related productclasses
Synonyms
Levelling cassette for duct mounting, raised and subfloor installation square
