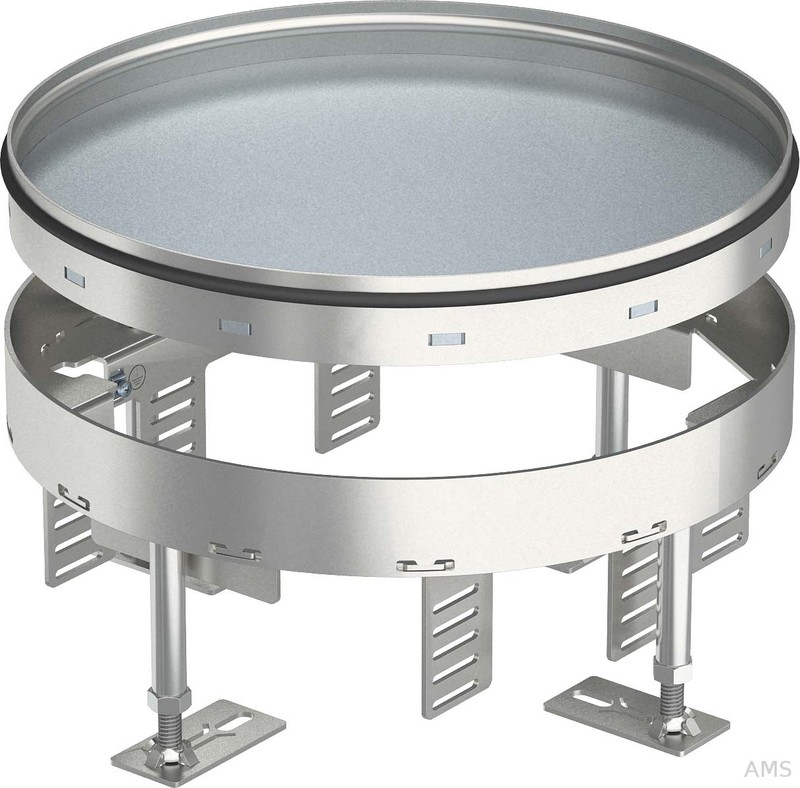

Levelling cassette for duct mounting, raised and subfloor installation round
Code
MC000696Version
1
Group
Electrical - Underfloor cable systems (MG000050)Release
Drawing
Features
01 | Di | Diameter (mm) EF000551 - Numeric | |
02 | Di1 | Diameter 1 (mm) EF010945 - Numeric | |
03 | Di2 | Diameter 2 (mm) EF010946 - Numeric | |
04 | H | Height (mm) EF000040 - Numeric | |
05 | H1 | Height 1 (mm) EF010005 - Numeric | |
06 | H2 | Height 2 (mm) EF010006 - Numeric | |
07 | s | Material thickness (mm) EF000386 - Numeric |
Related productclasses
Synonyms
Levelling cassette for duct mounting, raised and subfloor installation round
