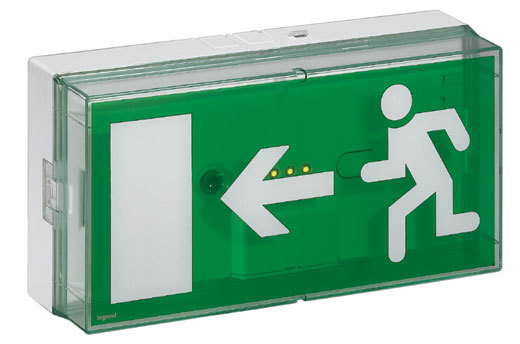

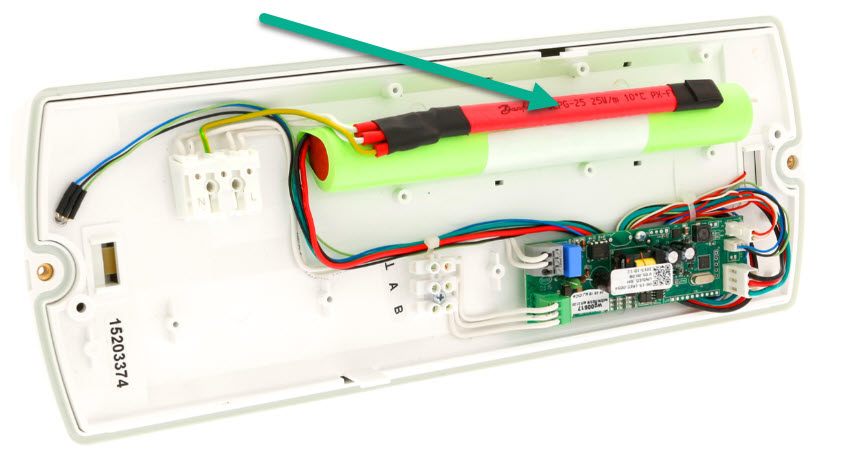

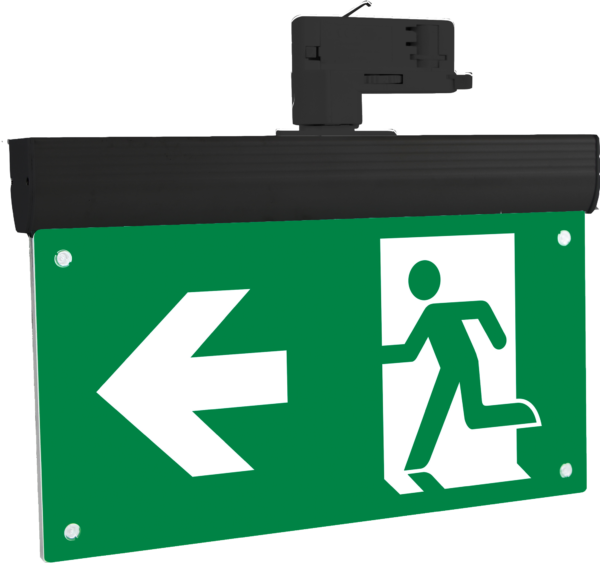

Emergency luminaire EC001957

Published
Luminaires EG000027

Features 59

  1. 1

    Mounting methodEF000003

    Choose one value

    Wall surface mountedCeiling surface mountingWall surface mounting/ceiling surface mountingBottom mountingSupporting bracketPendantBuilt-inSurface mounting/recessed mountingChain
  2. 2

    FunctionEF000030

    Choose one value

    Escape route lightingEscape route signageEscape route lighting/signage
  3. 3

    Suitable for labelling typeEF001277

    Choose one value

    StickerInsert sheet/plateAcrylic plateOther
  4. 4

    Type of indicatorEF001278

    Choose one value

    Single/double-sidedOnly single-sided (no longer used)Three-sidedFour-sided
  5. 5

    With pictogramEF011099

    Yes or no

    YesNo
  6. 6

    Monitoring equipment (no longer used)EF008091

    Choose one value

    Test buttonAutomatic self testSafety module for monitoring (central feeded system)OtherNone
  7. 7

    Wiring systemEF002960

    Choose one value

    Standby switchingContinuous circuit/emergency circuit
  8. 8

    With remote switch connectionEF007947

    Yes or no

    YesNo
  9. 9

    Power supply system (no longer used)EF000233

    Choose one value

    Central (central battery)Peripheral (individual battery)
  10. 10

    Battery technologyEF004351

    Choose one value

    LeadLithium-ionNiCdNiMHOther
  11. 11

    Lamp typeEF002423

    Choose one value

    Incandescent lampLV halogen lampHV halogen lampCompact fluorescent lampLED exchangeableLED not exchangeableFluorescent lampOther
  12. 12

    With light sourceEF005905

    Yes or no

    YesNo
  13. 13

    Suitable for number of light sourcesEF006436

    A number

  14. 14

    Lamp holderEF000048

    Choose one value

    2G72G102G112G13B15dB22dBA9sE10E14E27
  15. 15

    Number of lighting headsEF004258

    A number

  16. 16

    Housing materialEF001596

    Choose one value

    AluminiumSteelStainless steelPlasticOther
  17. 17

    Housing colourEF000136

    Choose one value

    AluminiumAnthraciteBeigeBlueBrownBronzeChromeStainless steelYellowGold
  18. 18

    Cover materialEF004284

    Choose one value

    Glass, opalGlass, structuredGlass, transparentGlass, matt/satinizedPlastic, opalPlastic, structuredPlastic, transparentPlastic, matt/satinizedOtherWithout cover
  19. 19

    Voltage typeEF000187

    Choose one value

    ACDCAC/DC
  20. 20

    Nominal voltageEF005127

    A range, from and to, in V

  21. 21

    LED nominal current at constant current (no longer used)EF012150

    A range, from and to, in mA

  22. 22

    Type of control gearEF000381

    Choose one value

    Electronic transformerElectronic ballastLow-loss ballast inductiveLow-loss ballast compensatedLED operating device voltage-controlledLED operating device current-controlledMagnetic transformerNot required
  23. 23

    Light distributorEF012170

    Choose one value

    Diffuser lens/optic/panelFocal lensReflectorRefractor lensOtherNone
  24. 24

    Energy efficiency class of the built-in lampEF012487

    Choose one value

    A++, A+, A (LED)Other
  25. 25

    Energy efficiency class of the provided exchangeable built-in lampEF012488

    Choose one value

    A++A+ABCDE
  26. 26

    Highest energy efficiency class of the exchangeable lampEF012489

    Choose one value

    A++A+ABCDE
  27. 27

    Lowest energy efficiency class of the exchangeable lampEF012490

    Choose one value

    A++A+ABCDE
  28. 28

    Power supply energy efficiency index (EEI) (no longer used)EF011875

    Choose one value

    A1 BATA1A2 BATA2A3B1B2COther
  29. 29

    Rated lifetime L70/B10 at 25 °C (no longer used)EF011869

    A number in h

  30. 30

    Rated lifetime L70/B50 at 25 °CEF011870

    A number in h

  31. 31

    Rated life time L80/B10 at 25 °C (no longer used)EF011871

    A number in h

  32. 32

    Rated lifetime L80/B50 at 25 °C (no longer used)EF011872

    A number in h

  33. 33

    Rated lifetime L90/B10 at 25 °C (no longer used)EF011873

    A number in h

  34. 34

    Rated lifetime L90/B50 at 25 °C (no longer used)EF011874

    A number in h

  35. 35

    Degree of protection (IP)EF005474

    Choose one value

    IP00IP10IP12IP20IP21IP22IP23IP24IP2XIP30
  36. 36

    Degree of protection (NEMA)EF011959

    Choose one value

    1233R44X1213Other
  37. 37

    Impact strengthEF004293

    Choose one value

    IK00IK01IK02IK03IK04IK05IK06IK07IK08IK09
  38. 38

    Protection class according to IEC 61140EF000004

    Choose one value

    IIIIIINone
  39. 39

    Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24EF006420

    Yes or no

    YesNo
  40. 40

    Rated ambient temperature according to IEC 62722-2-1EF012090

    A range, from and to, in °C

  41. 41

    Max. system powerEF009347

    A number in W

  42. 42

    Rated luminous flux according to IEC 62722-2-1 (no longer used)EF009349

    A number in lm

  43. 43

    Luminous flux in standby modeEF011954

    A number in lm

  44. 44

    Colour temperatureEF009346

    A range, from and to, in K

  45. 45

    Power factorEF025740

    A number

  46. 46

    Recognition distanceEF008732

    A number in m

  47. 47

    Nominal operation timeEF012518

    A range, from and to, in h

  48. 48

    WidthEF000008

    A number in mm

  49. 49

    Height/depthEF001456

    A number in mm

  50. 50

    LengthEF001438

    A number in mm

  51. 51

    Outer diameterEF000015

    A number in mm

  52. 52

    Built-in widthEF000846

    A number in mm

  53. 53

    Built-in height/depthEF023518

    A number in mm

  54. 54

    Built-in lengthEF004265

    A number in mm

  55. 55

    Built-in diameterEF000943

    A number in mm

  56. 56

    Type of wiringEF011868

    Choose one value

    Suitable for loop-through wiringLoop-through wiring includedEnding
  57. 57

    Number of polesEF001391

    A number

  58. 58

    Conductor cross sectionEF000085

    A number in mm²

  59. 59

    Connection typeEF000124

    Choose one value

    Unpreassembled connection cableConnection cable with mains plug (2P+E)Connection cable with EuroplugConnection cable systemplugScrew connectionPlug-in connectionSoldering connectionOther

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
